Home >> Hyundai >> 2012 >> Accent GLS, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Components and Components Location >> Components

Components and Components Location: Components

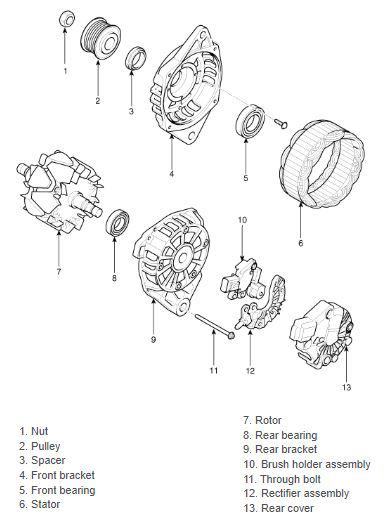

Fig 1: Alternator Components Location

G08804252

Courtesy of HYUNDAI MOTOR AMERICA
