Components and Components Location: Components

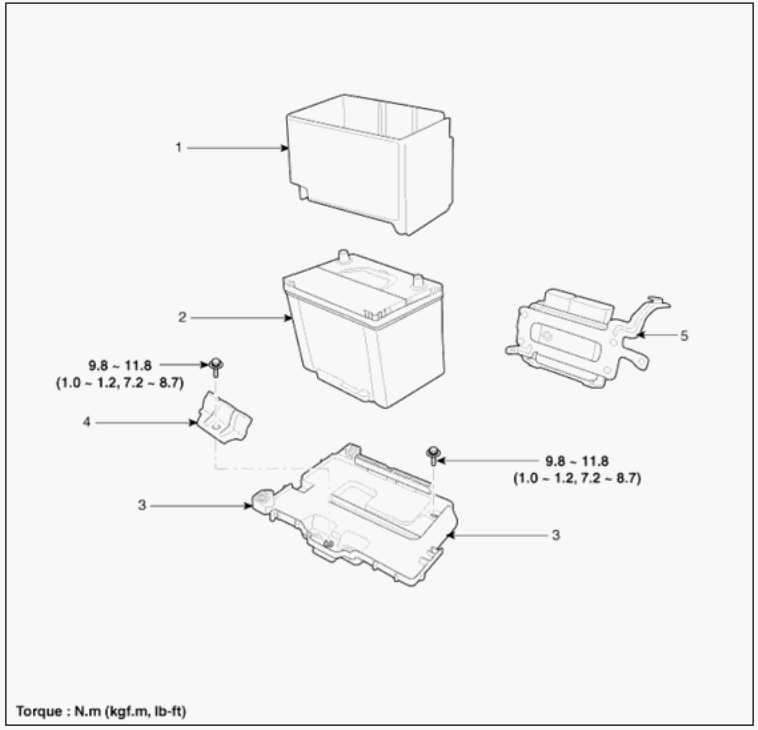

Fig 1: Battery Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Battery insulation pad	4. Battery mounting bracket`
2. Battery	5. ECM & bracket assembly`
3. Battery tray
