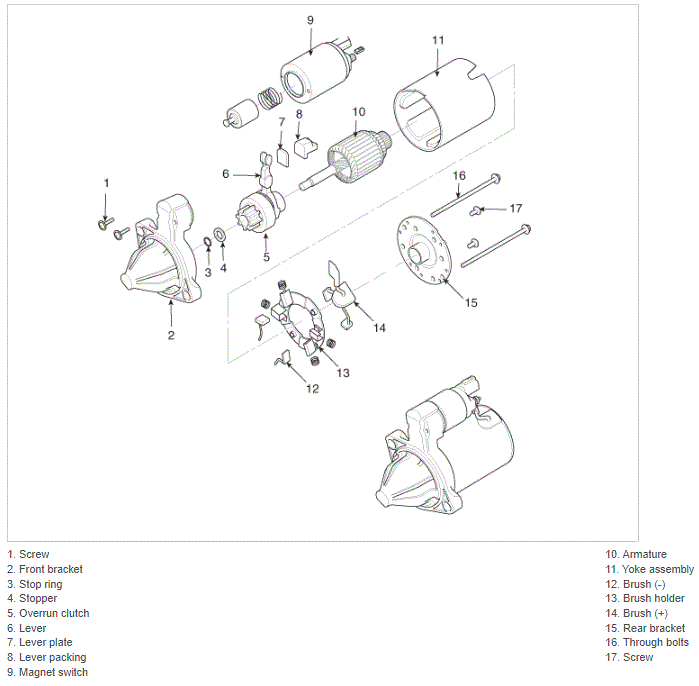

Components and Components Location: Components
Courtesy of HYUNDAI MOTOR AMERICA
| 1. Screw |
10. Armature |
| 2. Front Bracket |
11. Yoke assembly` |
| 3. Stop ring |
12. Brush (-) |
| 4. Stopper |
13. Brush holder |
| 5. Overrun clutch |
14. Brush (+) |
| 6. Lever |
15. Rear bracket |
| 7. Lever plate |
16. Through bolts |
| 8. Lever packing |
17. Screw |
| 9. Magnet switch |
