Accent GLS, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
Oil Pump
>>
Components and Components Location
>>
Components
Components and Components Location: Components

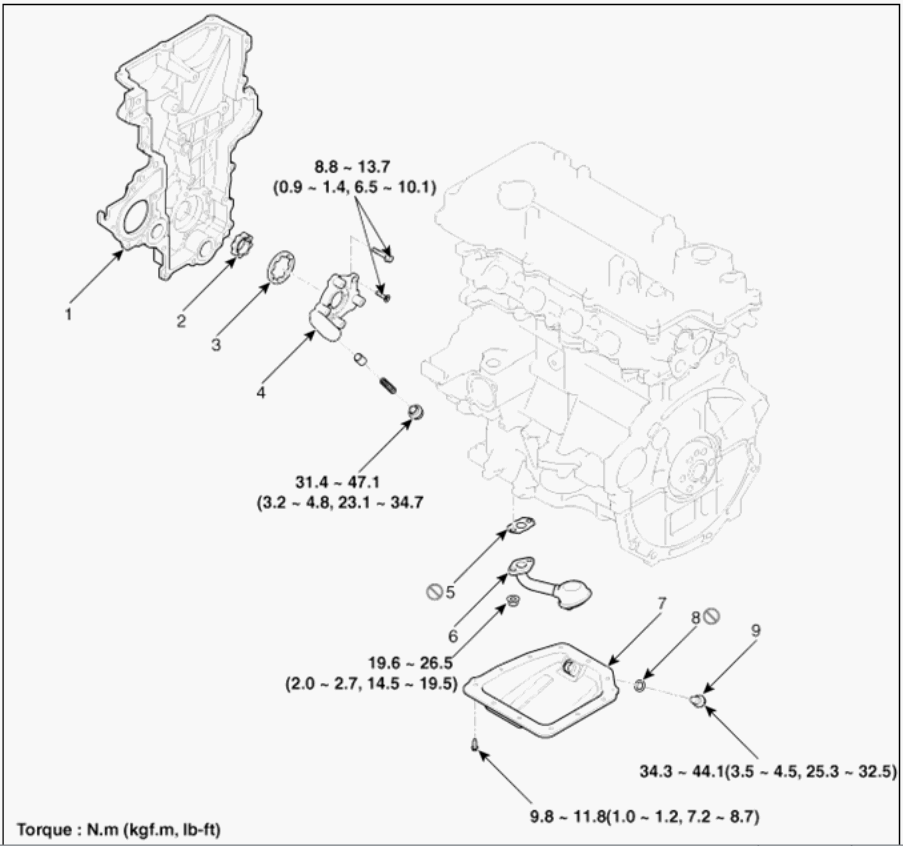

Fig 1: Oil Pump Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
1. Timing chain cover
6. Oil screen
2. Inner rotor
7. Oil pan
3. Outer rotor
8. Drain plug gasket
4. Pump cover
9. Oil drain plug
5. Gasket
