Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.

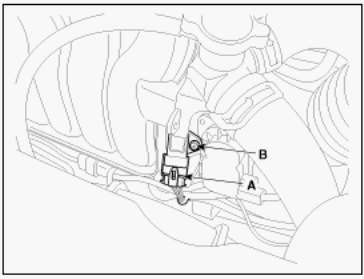

    Fig 1: Identifying Manifold Absolute Pressure Sensor Connector And Installation Bolt
    G08804421Courtesy of HYUNDAI MOTOR AMERICA
