Components and Components Location: Components

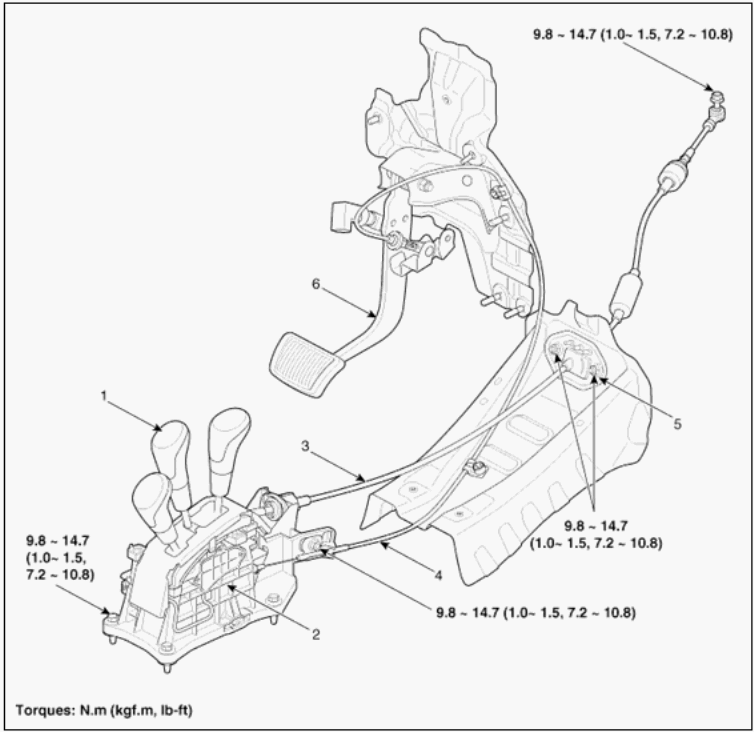

Fig 1: Shift Lever Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Shift lever knob	4. Shift lock cable assembly
2. Shift lever assembly	5. Retainer
3. Control cable	6. Brake pedal assembly
