Components and Components Location: Components

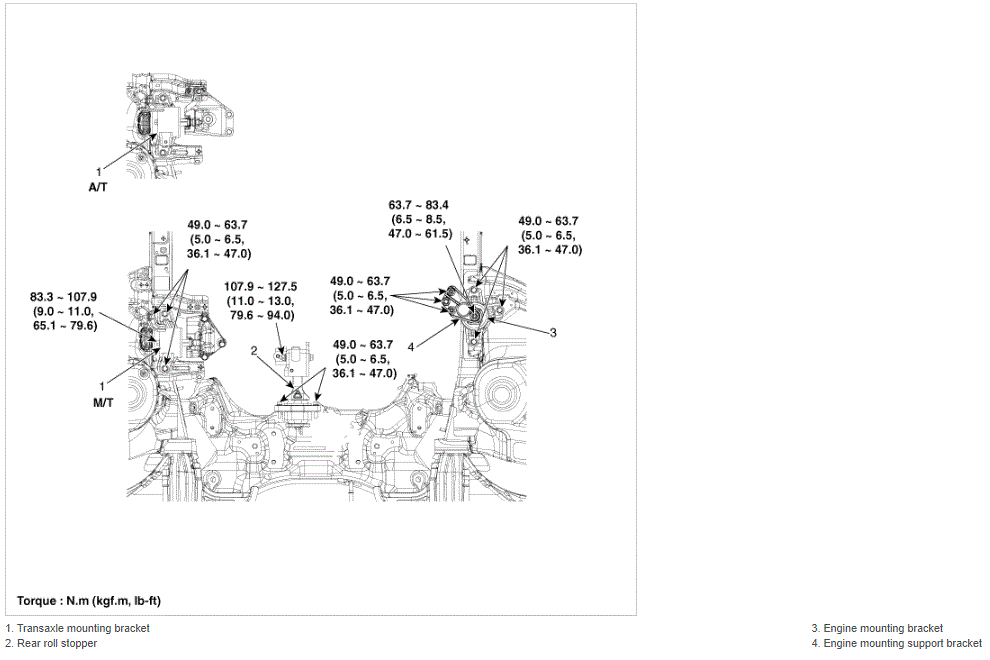

Fig 1: Engine And Transaxle Assembly Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Transaxle mounting bracket	3. Engine mounting bracket
2. Rear roll stopper	4. Engine mounting support bracket
