Components and Components Location: Components

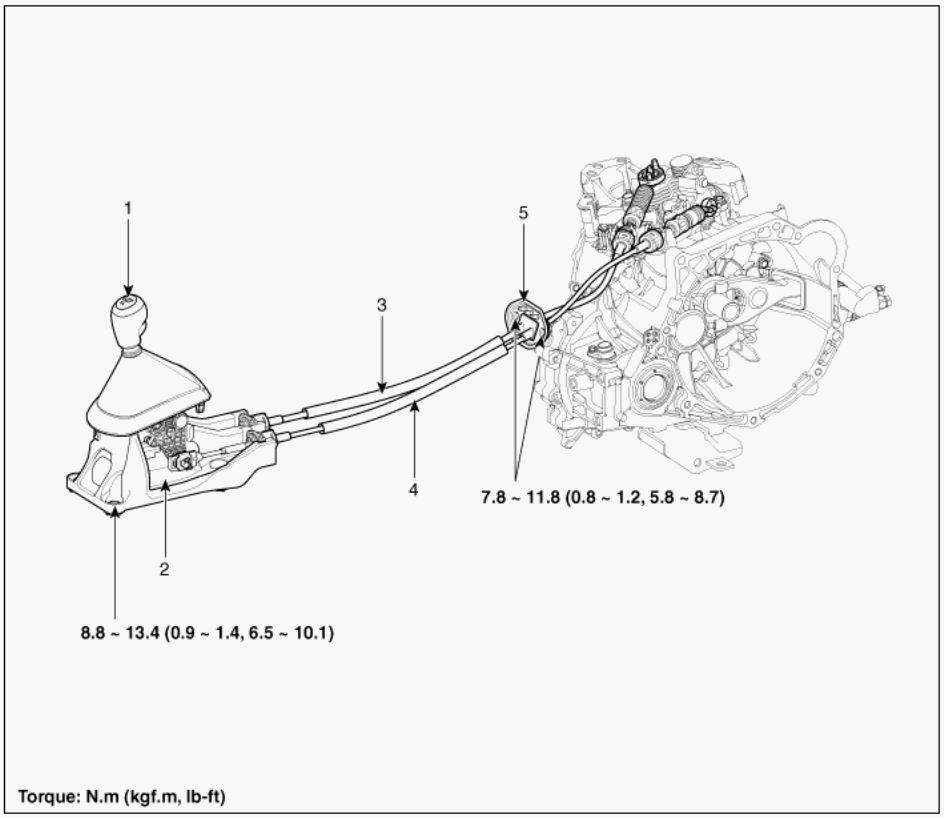

Fig 1: Manual Transaxle Control System Shift Lever Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Shift lever knob & boot assembly	4. Select cable assembly
2. Shift lever assembly	5. Retainer
3. Shift cable assembly
