Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. Remove the Reinforcing panel after loosening the mounting bolt and nut.

    (Refer to "CRASH PAD LOWER PANEL ")

  4. Disconnect the IPM connectors, loosening the nuts (4EA).

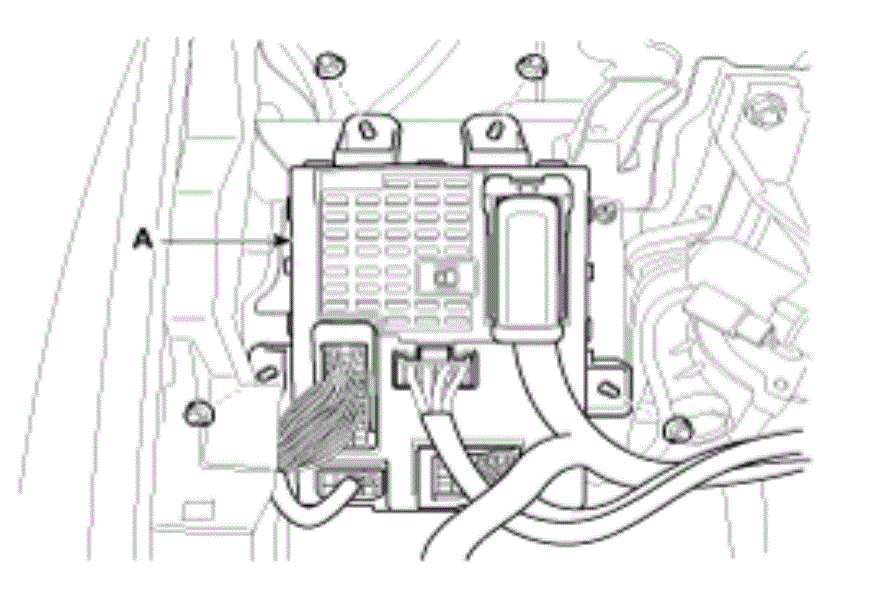

    Fig 1: Identifying IPM Connectors And Nuts
    G08814261Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the rear connector, and then remove the IPM.
