RF Receiver

NOTE:
  • Take care not to scratch the crash pad and related parts
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear seat.

    (Refer to "REAR SEAT ASSEMBLY ")

  3. Remove the rear package tray.

    (Refer to "REAR PACKAGE TRAY TRIM ")

  4. Disconnect the RF receiver connector (A).
  5. Remove the RF receive (B) after loosening the bolt (1EA).

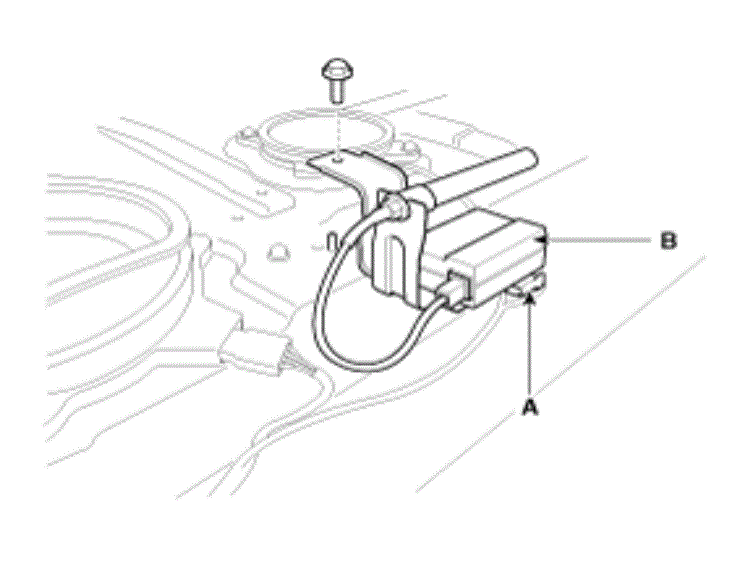

    Fig 1: Identifying RF Receiver And Connector
    G08814194Courtesy of HYUNDAI MOTOR AMERICA
