Trunk Lid Open Switch

  1. Check for continuity between the Trunk lid open switch terminals.

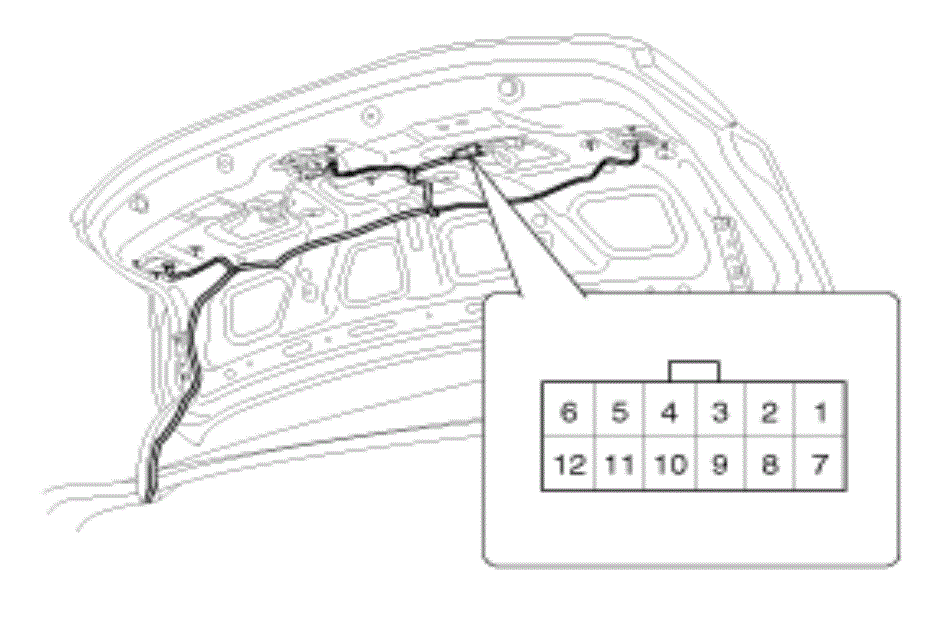

    Fig 1: Identifying Trunk Lid Open Switch Terminals
    G08814180Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch.

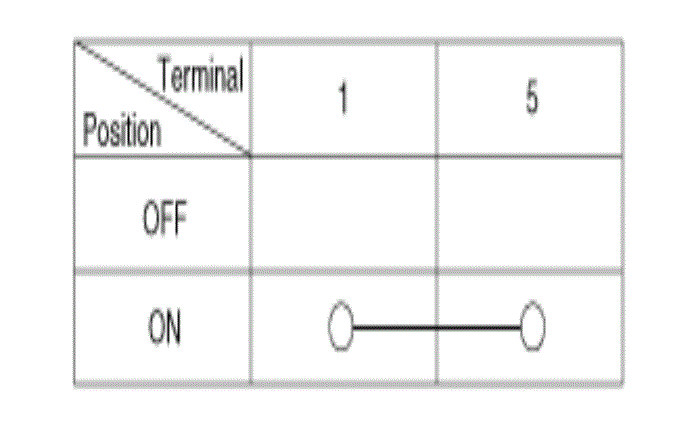

    Fig 2: Trunk Lid Open Switch Continuity Reference Chart
    G08814181Courtesy of HYUNDAI MOTOR AMERICA
