Injector Drive Box (IDB)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

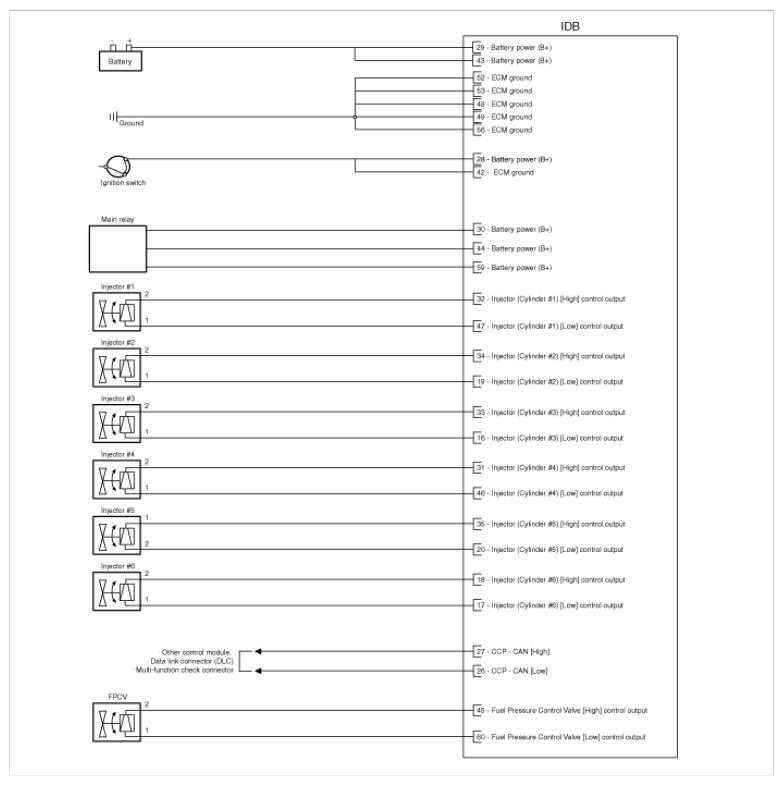

Fig 1: Injector Drive Box Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

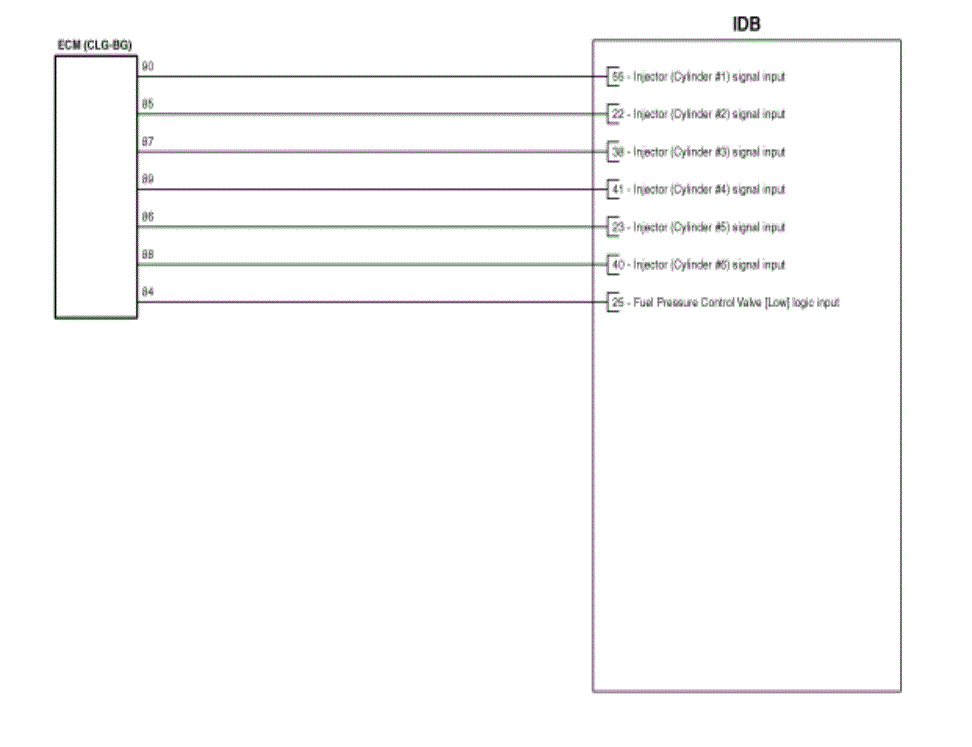

Fig 2: Injector Drive Box Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
