Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the accelerator position sensor connector (A).

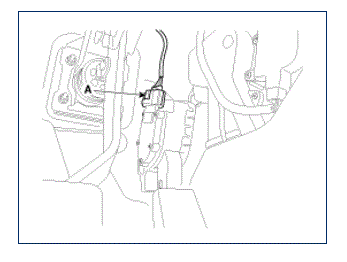

Fig 1: Identifying Accelerator Position Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the installation nuts (B) and bolt (C), and then remove the accelerator pedal module.

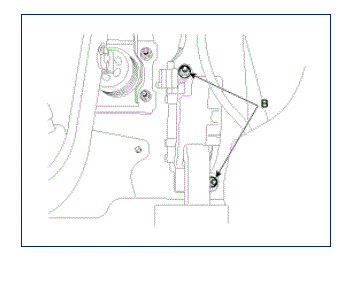

Fig 2: Identifying Accelerator Pedal Module Installation Nuts
Courtesy of HYUNDAI MOTOR AMERICA

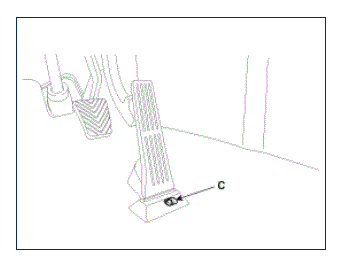

Fig 3: Identifying Accelerator Pedal Module Installation Bolts
Courtesy of HYUNDAI MOTOR AMERICA
