Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Disconnect the fuel sender connector (A).

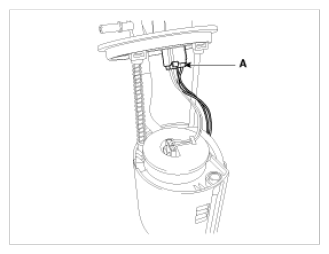

    Fig 1: Identifying Fuel Sender Connector
    G08809784Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the fuel sender (A) after releasing the fix hook.

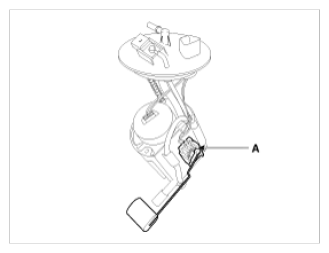

    Fig 2: Identifying Fuel Sender
    G08809785Courtesy of HYUNDAI MOTOR AMERICA

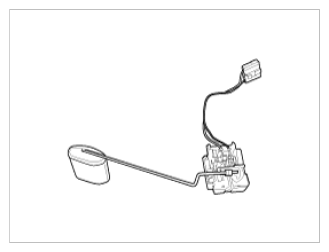

    Fig 3: Identifying Fuel Sender Fixing Hook
    G08809786Courtesy of HYUNDAI MOTOR AMERICA
