Home >> Hyundai >> 2012 >> Azera >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine & Transaxle Assembly >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

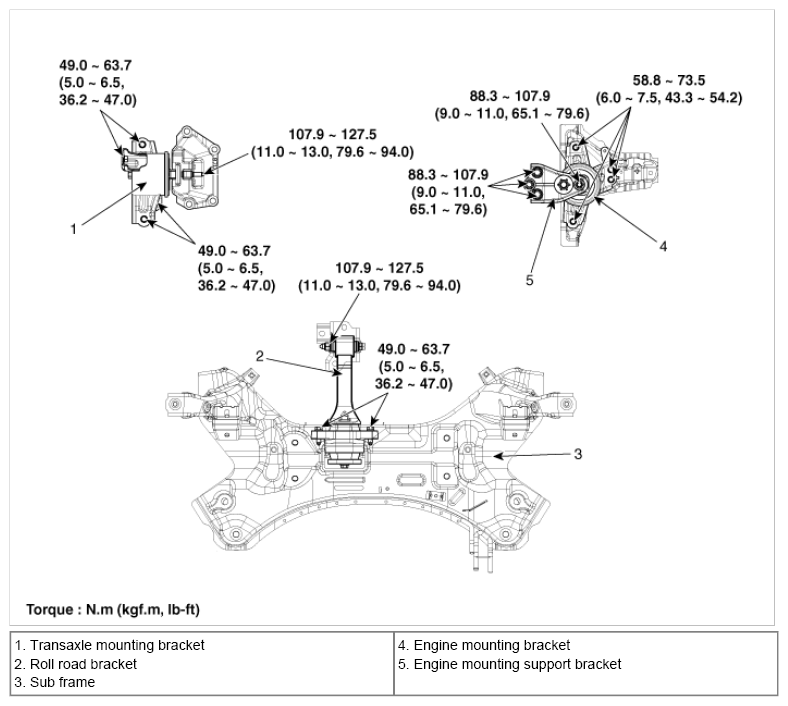

Fig 1: Engine Mounting Bracket, Roll Road Bracket And Sub Frame With Torque Specifications

G08809104

Courtesy of HYUNDAI MOTOR AMERICA
