Home >> Hyundai >> 2012 >> Azera >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine & Transaxle Assembly >> Engine Room Under Cover >> Components and Components Location >> Components

Components and Components Location: Components

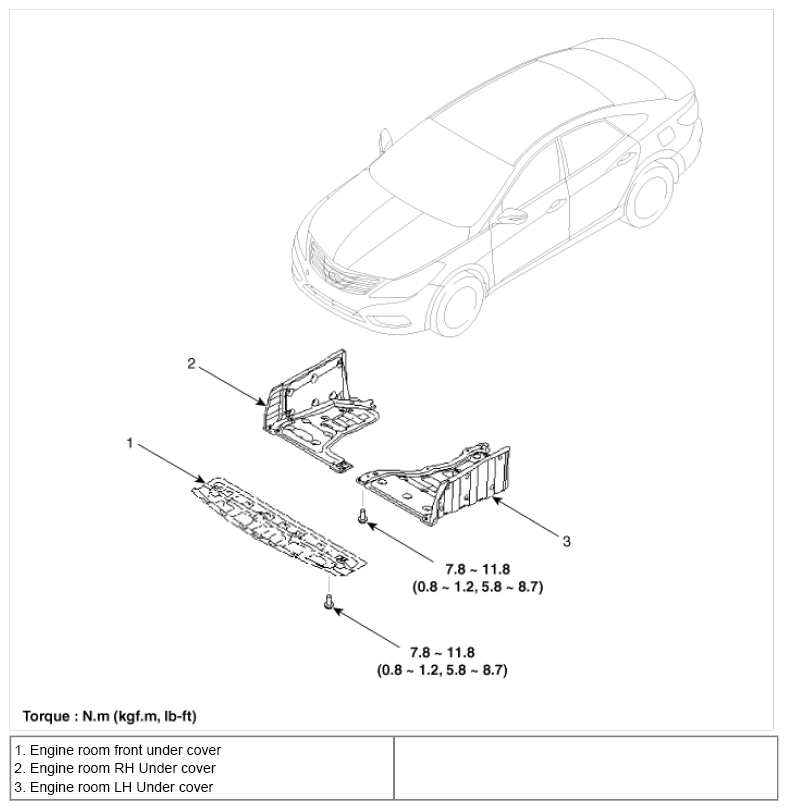

Fig 1: Engine Room Front, LH And RH Under Cover With Torque Specifications

G08809102

Courtesy of HYUNDAI MOTOR AMERICA
