Repair Procedures: Removal

Remove the battery and the battery tray.
(Refer to "BATTERY ")
Remove the under cover (A).
Tightening torque: 7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

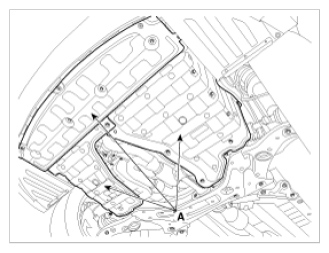

Fig 1: Identifying Engine Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to Hydraulic System - "FLUID ")
Remove the valve body cover (B) and eyebolt (A).
Tightening torque:
1. 4.9 ~ 5.9 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)
2. 13.8 ~ 14.7 N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.8 lb-ft)
CAUTION: Always replace the gasket of the eyebolt use new one whenever loosening eyebolt.

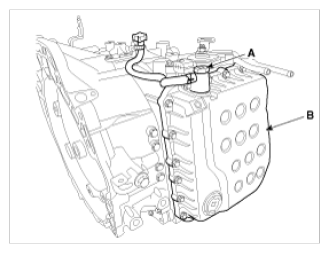

Fig 2: Identifying Valve Body Cover And Eyebolt
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

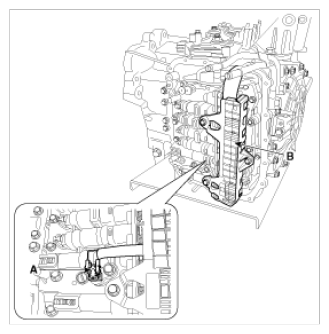

Fig 3: Identifying Solenoid Valve And Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body assembly (A).
Tightening torque: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

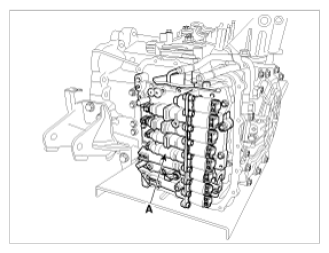

Fig 4: Identifying Valve Body Assembly
Courtesy of HYUNDAI MOTOR AMERICA
