Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

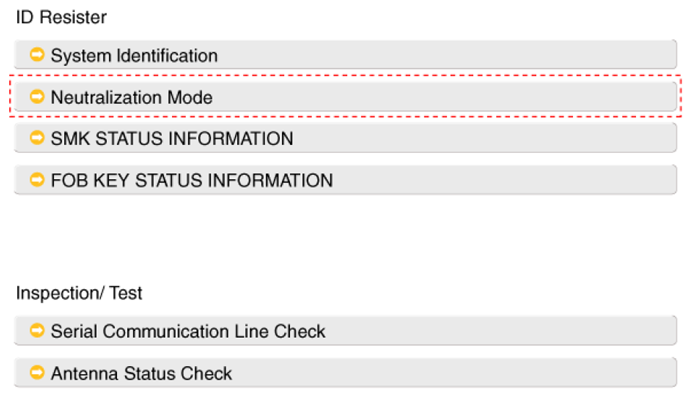

Fig 1: Scantool Display - ID Register
G07256507Courtesy of HYUNDAI MOTOR CO.

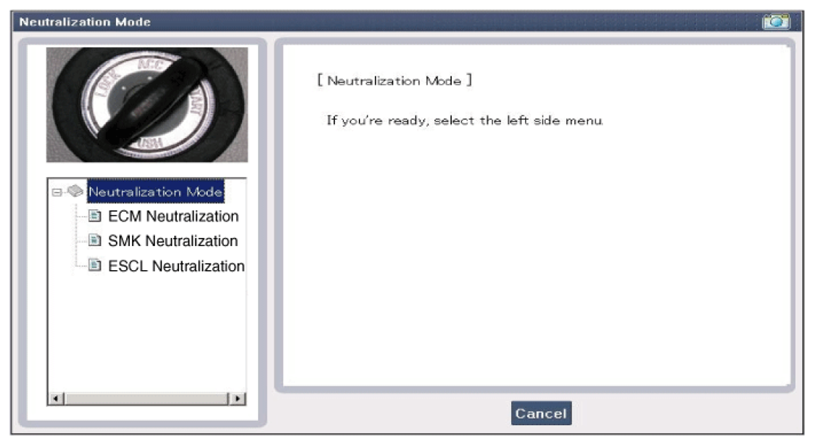

Fig 2: Scantool Display - Neutralization Mode
G07256508Courtesy of HYUNDAI MOTOR CO.
Fig 3: Scantool Display - ECM Neutralization
G07256509Courtesy of HYUNDAI MOTOR CO.

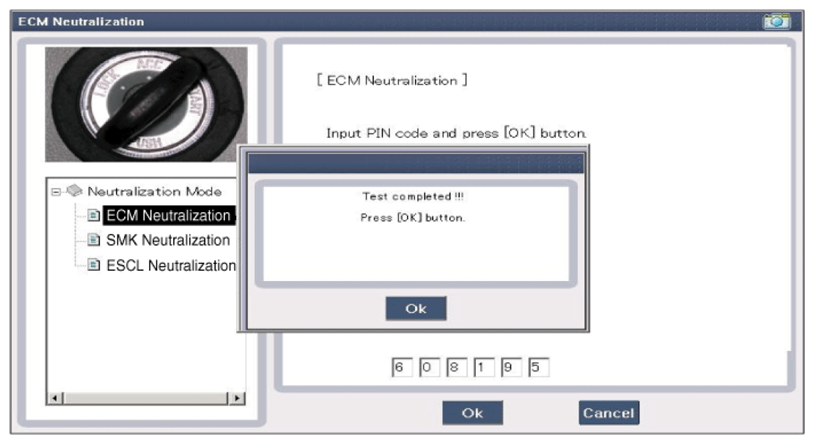

Fig 4: Scantool Display - ECM Neutralization
G07256510Courtesy of HYUNDAI MOTOR CO.

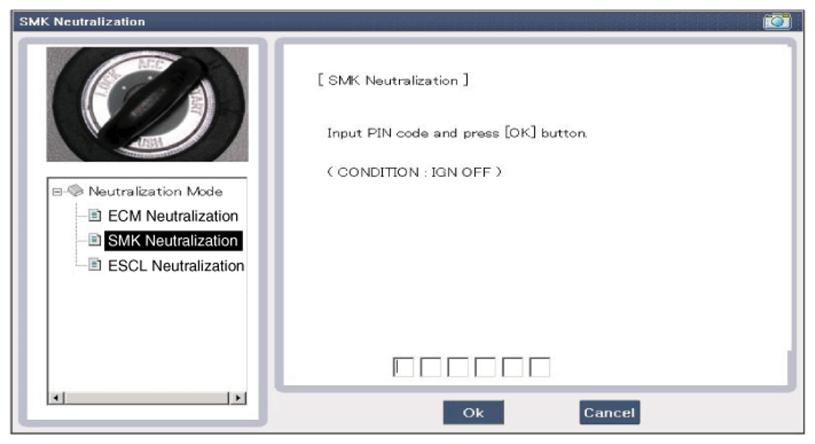

Fig 5: Scantool Display - SMK Neutralization
G07256511Courtesy of HYUNDAI MOTOR CO.
Fig 6: Scantool Display - SMK Neutralization
G07256512Courtesy of HYUNDAI MOTOR CO.

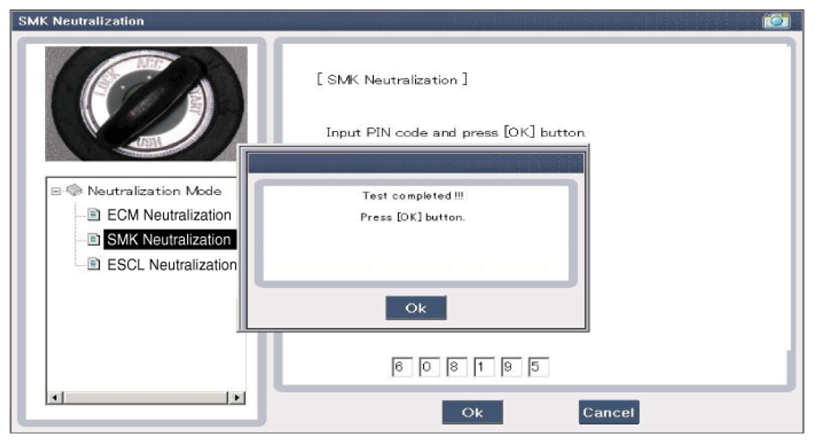

Fig 7: Scantool Display - SMK Neutralization
G07256513Courtesy of HYUNDAI MOTOR CO.
INPUT SWITCH LIST

Input Switch List
No Item name Unit
1 SSB switch2 -
2 ACC -
3 IGN1 -
4 Gear 'P' Position -
5 Brake switch -
6 FL Door Lock Button -
7 FR Door Lock Button -
8 Trunk Lid switch -
9 Battery Voltage -
10 Alternator Voltage -
11 KEY out Indicator Lamp -
12 Immobilizer Lamp -
13 External Buzzer -
ACTUATOR LIST

Actuator List
No. Item name Condition
1 Immo.indicator Lamp Ignition switch ON
Engine off
2 External Buzzer Ignition switch ON
Engine off
3 Interior Antenna 1 Active Ignition switch ON
Engine off
4 Interior Antenna 2 Active Ignition switch ON
Engine off
5 Trunk Antenna Active Ignition switch ON
Engine off
6 Bumper Antenna Active Ignition switch ON
Engine off
7 DRV DR Antenna Active Ignition switch ON
Engine off
8 AST DR Antenna Active Ignition switch ON
Engine off
