Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

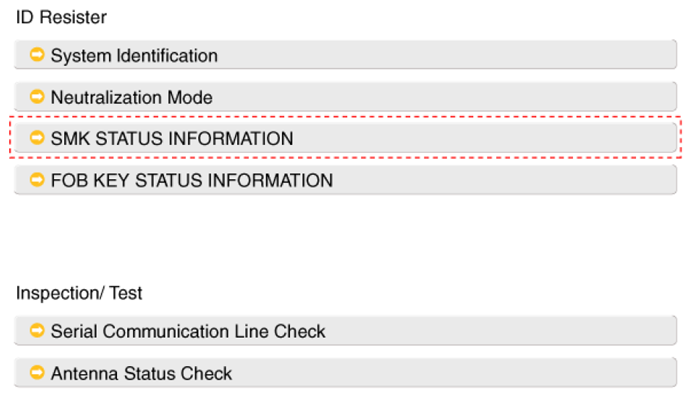

Fig 1: Scantool Display - ID Register
G07256505Courtesy of HYUNDAI MOTOR CO.

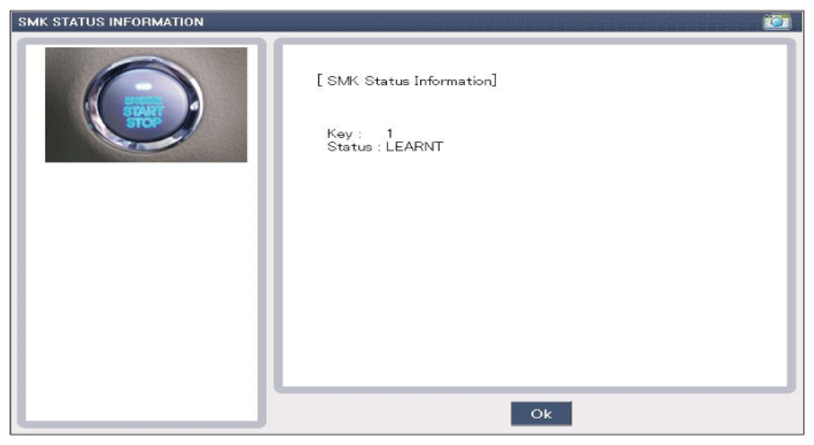

Fig 2: Scantool Display - SMK Ststus Information
G07256506Courtesy of HYUNDAI MOTOR CO.
