Circuit Diagram

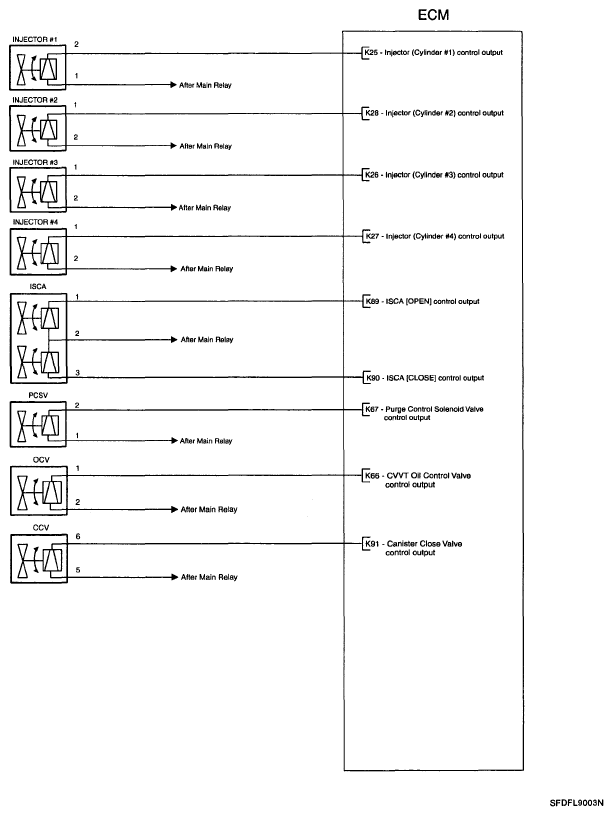

Fig 1: ECM And Ignition Switch Circuit Diagram (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

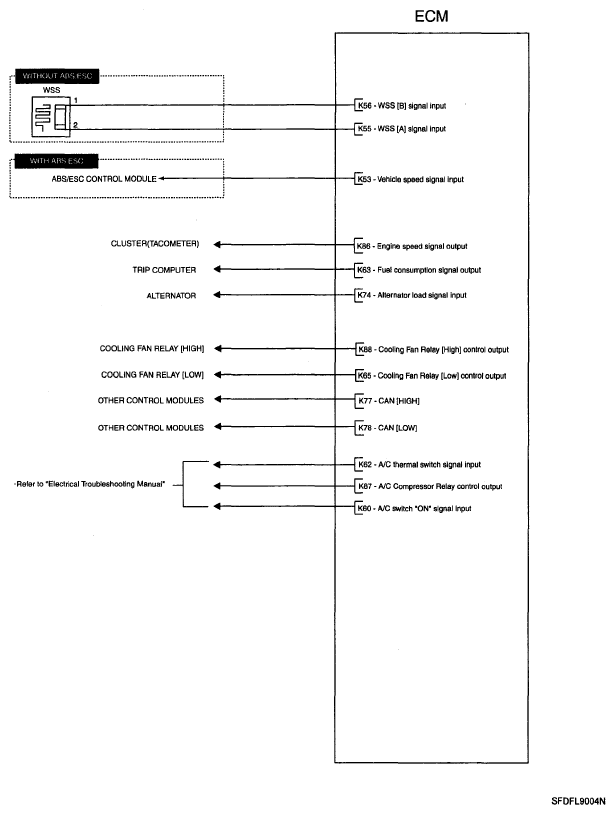

Fig 2: ECM And Ignition Switch Circuit Diagram (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

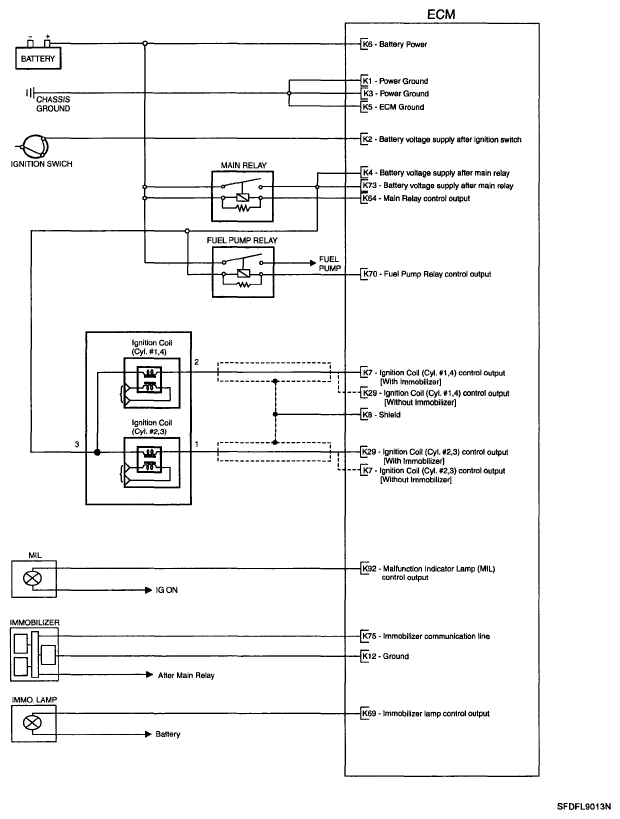

Fig 3: ECM And Ignition Switch Circuit Diagram (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

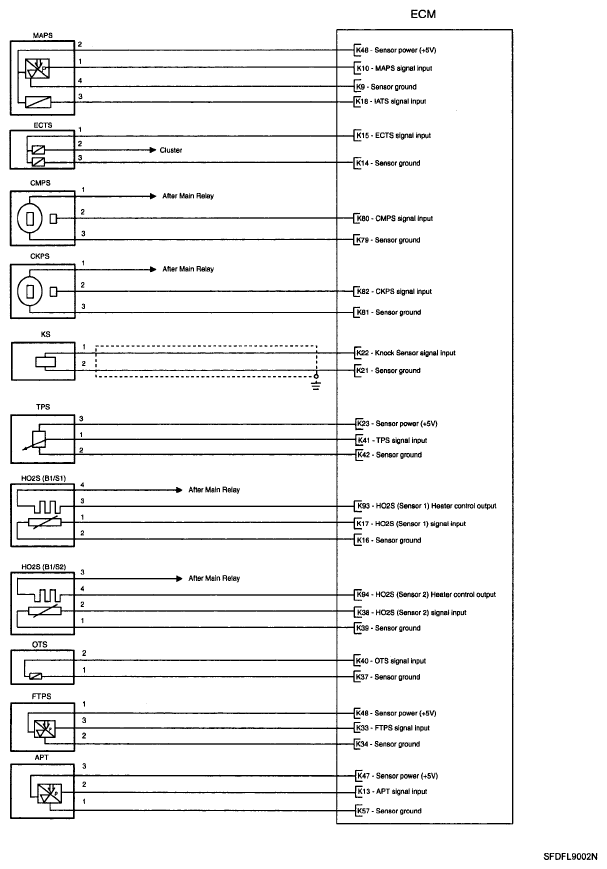

Fig 4: ECM And Ignition Switch Circuit Diagram (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
