Home >> Hyundai >> 2012 >> Elantra Touring GLS, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System >> Shift Lever >> Components

Shift Lever: Components

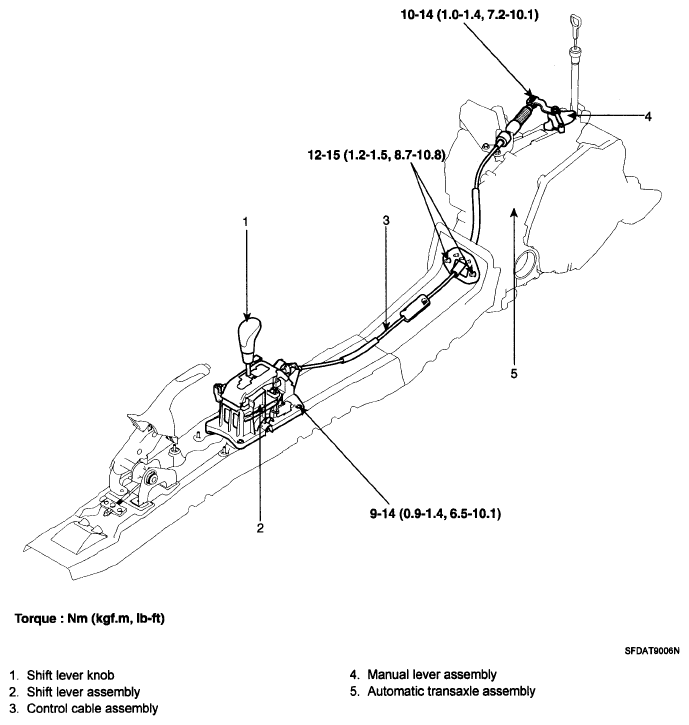

Fig 1: Automatic Transaxle Control System Replacement Components With Torque Specifications

G06136556

Courtesy of HYUNDAI MOTOR CO.
