Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

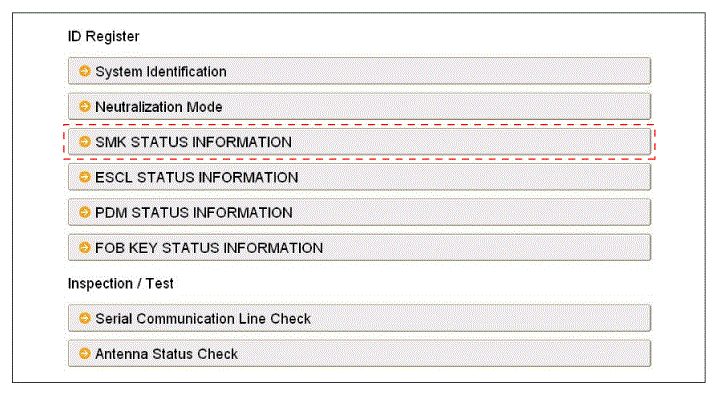

    Fig 1: Display - SMK Status Information ID Register
    G08831260Courtesy of HYUNDAI MOTOR AMERICA

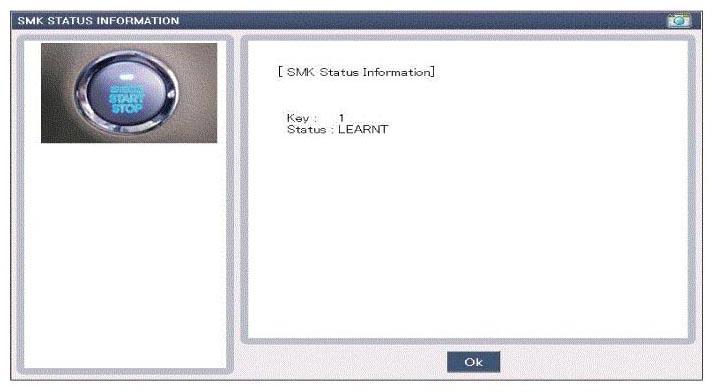

    Fig 2: Display - SMK Status Information
    G08831261Courtesy of HYUNDAI MOTOR AMERICA
