Components and Components Location: Component

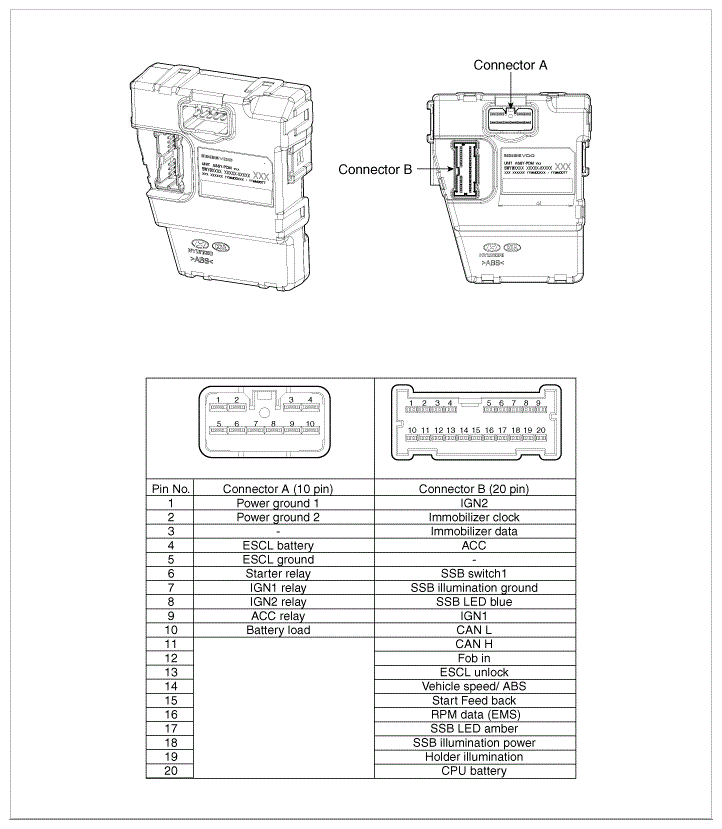

Fig 1: Identifying Power Distribution Module Connector A And B

G08838851

Courtesy of HYUNDAI MOTOR AMERICA
