Circuit Diagram

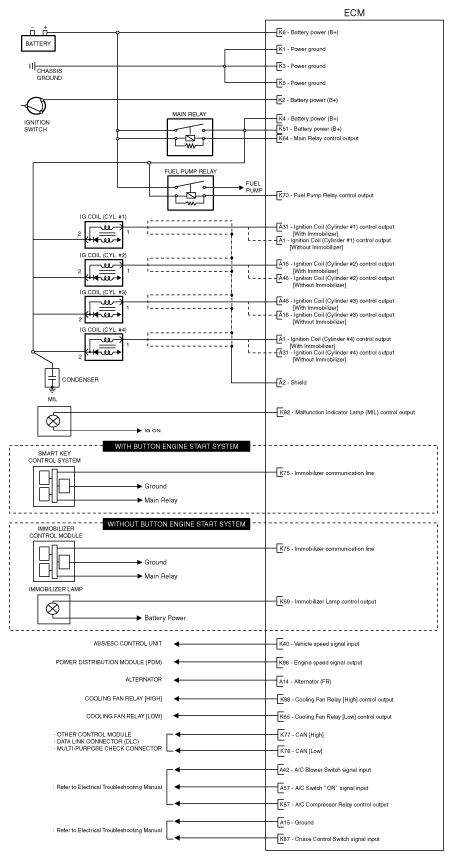

Fig 1: Engine Control Module (ECM) Circuit Diagram (1 Of 4)
G06514122Courtesy of HYUNDAI MOTOR CO.

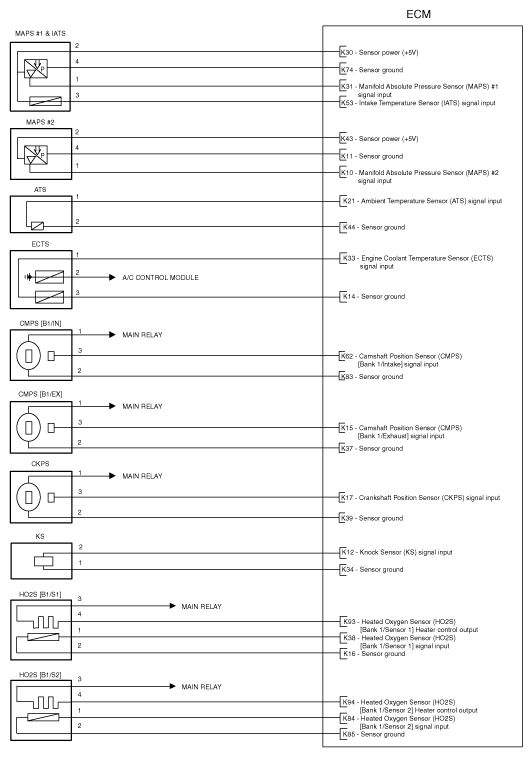

Fig 2: Engine Control Module (ECM) Circuit Diagram (2 Of 4)
G06514123Courtesy of HYUNDAI MOTOR CO.

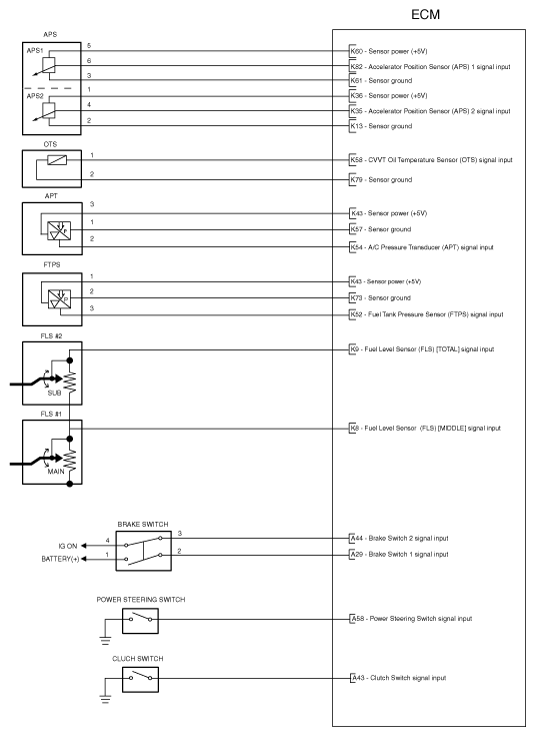

Fig 3: Engine Control Module (ECM) Circuit Diagram (3 Of 4)
G06514124Courtesy of HYUNDAI MOTOR CO.

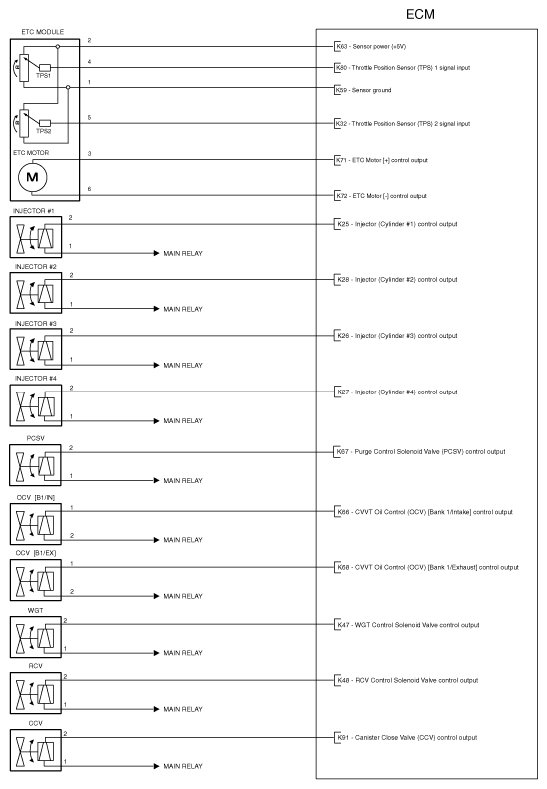

Fig 4: Engine Control Module (ECM) Circuit Diagram (4 Of 4)
G06514125Courtesy of HYUNDAI MOTOR CO.
