Power Window Relay: Troubleshooting

  1. No windows operate from the main switch on the driver's door.
    Fig 1: Power Window Troubleshooting Chart (No Window Operating From Main Switch)
    G06847804Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.

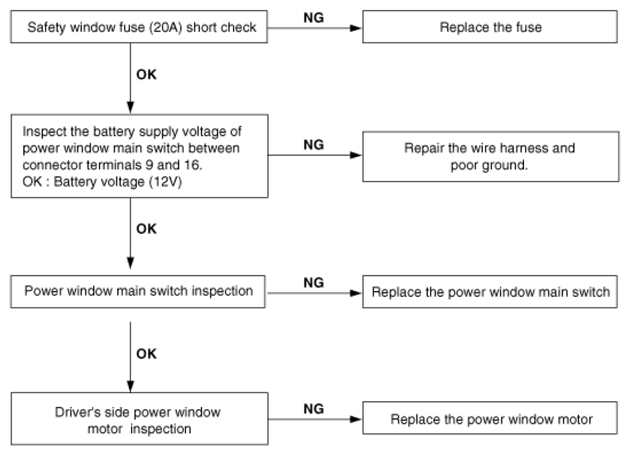

    Fig 2: Power Window Troubleshooting Chart (Driver's Side Window Not Operating)
    G06847805Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.
    Fig 3: Power Window Troubleshooting Chart (Passengers's Side Window Not Operating)
    G06847806Courtesy of HYUNDAI MOTOR CO.


  1. No windows operate from the main switch on the driver's door.

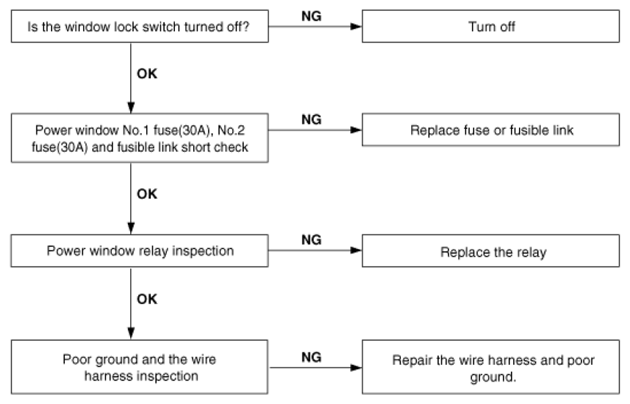

    Fig 1: Power Window Troubleshooting Chart (No Window Operating From Main Switch)
    G06847807Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.
    Fig 2: Power Window Troubleshooting Chart (Driver's Side Window Not Operating)
    G06847808Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

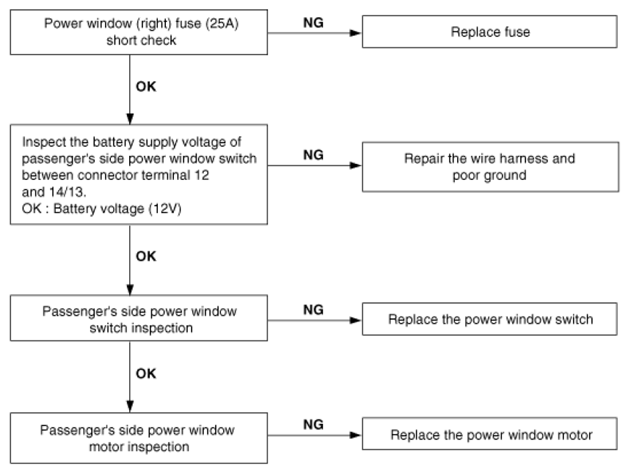

    Fig 3: Power Window Troubleshooting Chart (Passengers's Side Window Not Operating)
    G06847809Courtesy of HYUNDAI MOTOR CO.
