Circuit Diagram

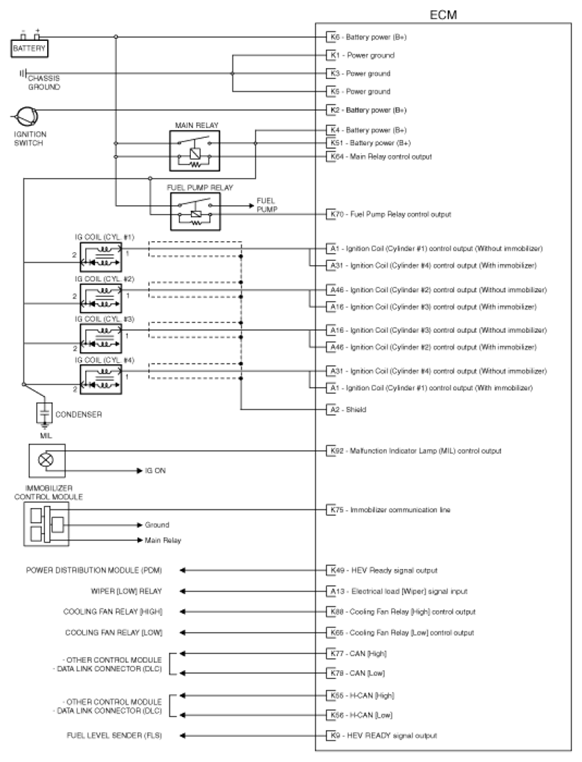

Fig 1: Engine Control Module Circuit Diagram (1 Of 4)
G07317736Courtesy of HYUNDAI MOTOR CO.

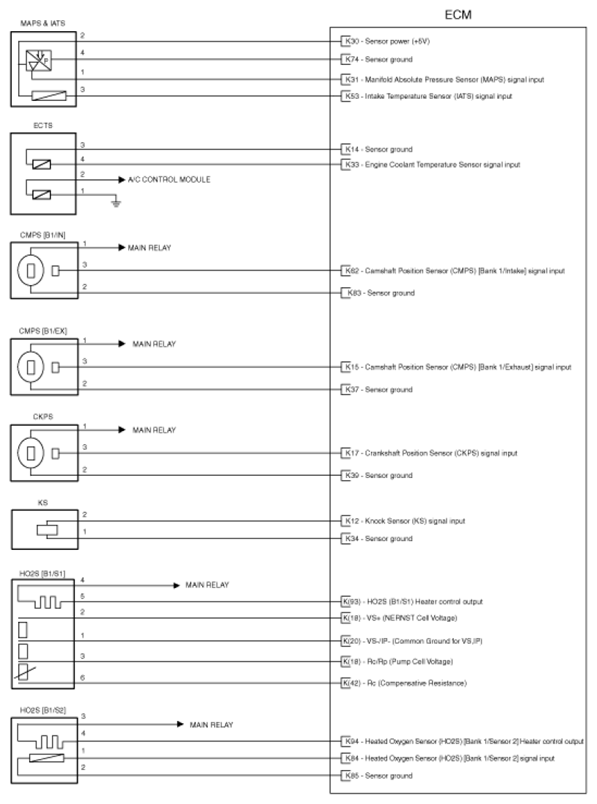

Fig 2: Engine Control Module Circuit Diagram (2 Of 4)
G07317737Courtesy of HYUNDAI MOTOR CO.

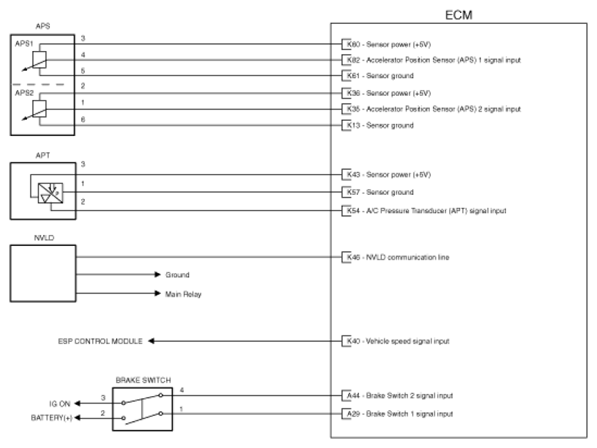

Fig 3: Engine Control Module Circuit Diagram (3 Of 4)
G07317738Courtesy of HYUNDAI MOTOR CO.

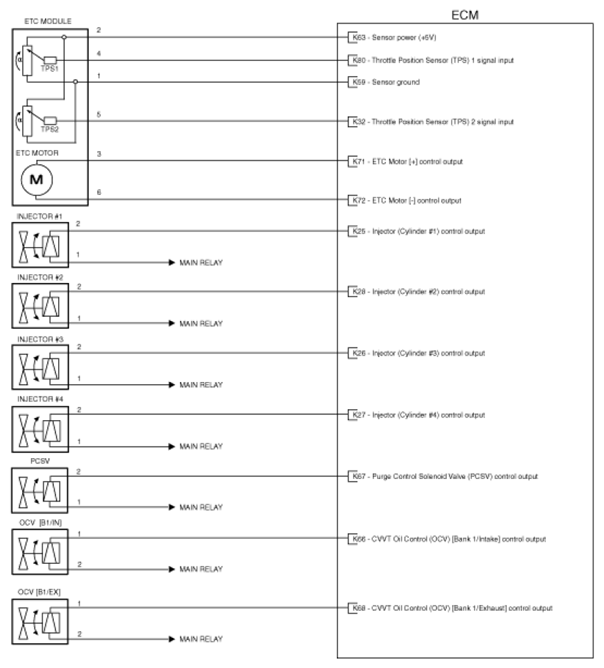

Fig 4: Engine Control Module Circuit Diagram (4 Of 4)
G07317739Courtesy of HYUNDAI MOTOR CO.
