Home >> Hyundai >> 2012 >> Tucson GL, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Components and Components Location >> Component

Components and Components Location: Component

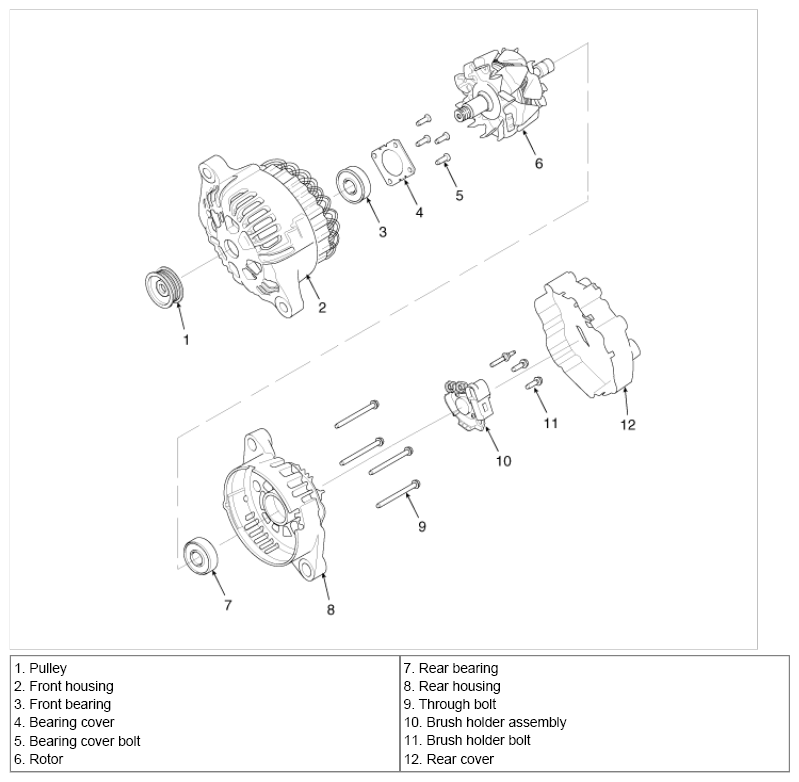

Fig 1: Exploded View Of Alternator

G06873110

Courtesy of HYUNDAI MOTOR CO.
