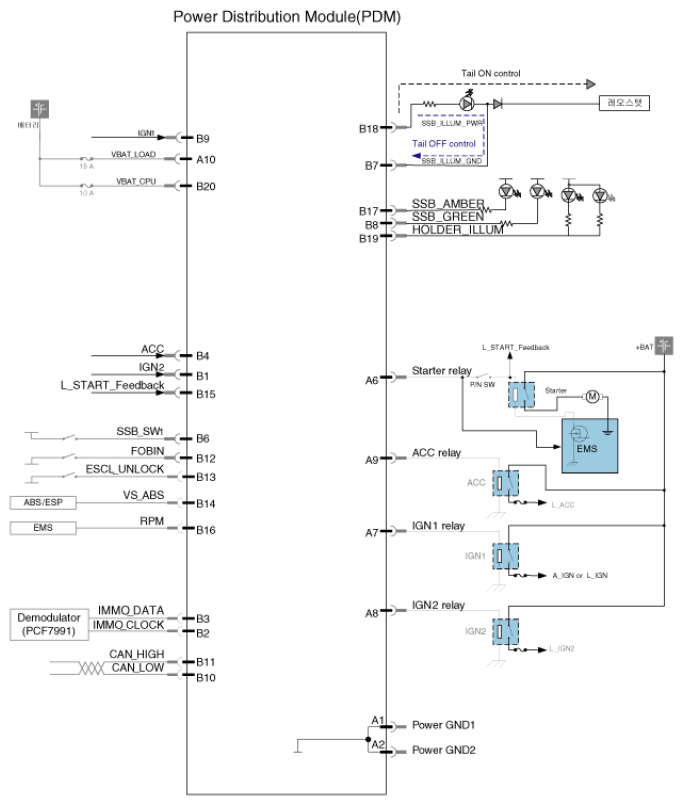

Home >> Hyundai >> 2012 >> Tucson GL, Automatic Trans >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> PDM (Power Distribution Module) >> Schematic Diagrams >> System Circuit Diagram
