Charging System
CHARGING SYSTEM SPECIFICATION CHART
| Items | Specification | ||
|---|---|---|---|
| 2.0 | 2.4 | ||
| Alternator | Type | Battery voltage sensing | |
| Rate voltage | 13.5 V, 110A | ||
| Speed in use | 1, 000 ~ 18, 000 rpm | ||
| Voltage regulator | IC regulator built-in type | ||
| Regulator setting voltage | 14.4 ± 0.1 V | ||
| Temperature compensation | -3.5 ± 1 mV/°C | ||

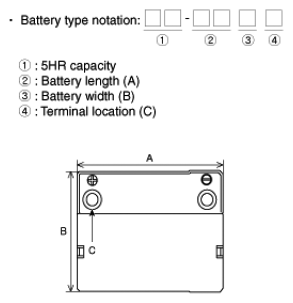

| Battery | Type | 48-23GL | 54-26GL |
| Cold cranking amperage [at -18°C (-0.4°F)] | 550A | 600A | |
| Reserve capacity | 92 min | 110 min | |
| Specific gravity [at 25°C (77°F)] | 1.280 ± 0.01 | ||
CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2 V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5 V at 26.7°C (80.1°F).
