Toe Adjustment

  1. Loosen the nut holding the assist arm cam bolt (A).
  2. Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and left cam bolt by the same amount.

    Toe

    Total: 0.2° ± 0.2°

    Individual: 0.1° ± 0.1°

    TOE ADJUSTING REFERENCE CHART

    Cam bolt Turning direction Toe
    LH (Driver's side) Clockwise Decrease (Toe in)
    Counter clockwise Increase (Toe out)
    RH Clockwise Increase (Toe out)
    Counter clockwise Decrease (Toe in)

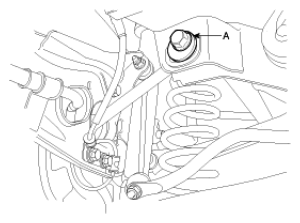

    Fig 1: Identifying Assist Arm Cam Bolt
    G06875209Courtesy of HYUNDAI MOTOR CO.
  3. When completing the toe adjustment, tighten the nut to specified torque.

    Tightening torque:

    137.3 ~ 156.9 N.m (14.0 ~ 16.0 Kgf.m, 101.3 ~ 115.7 lb-ft)
