Home >> Hyundai >> 2012 >> Tucson GL, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

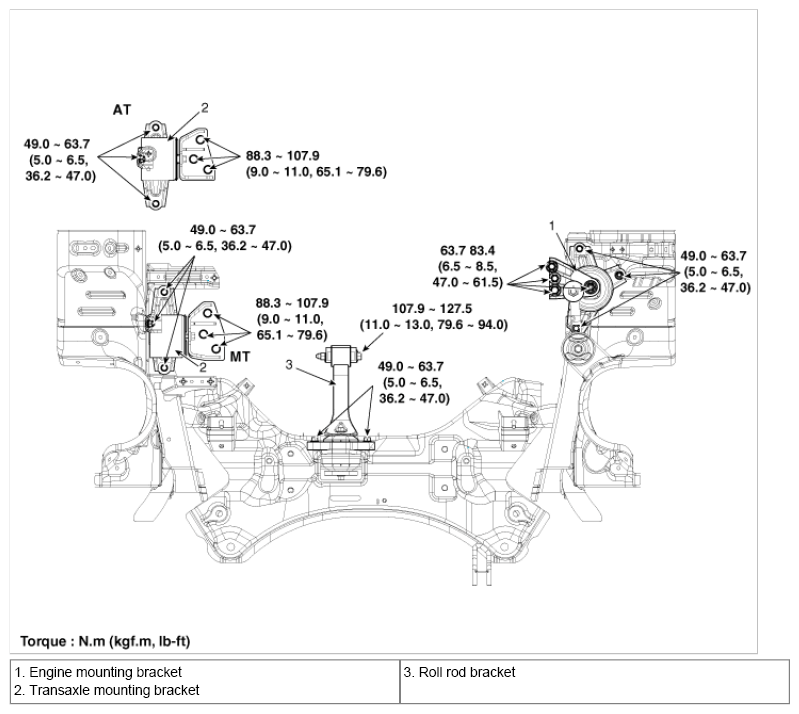

Fig 1: Engine Mounting Replacement Components With Torque Specifications

G06874979

Courtesy of HYUNDAI MOTOR CO.
