Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

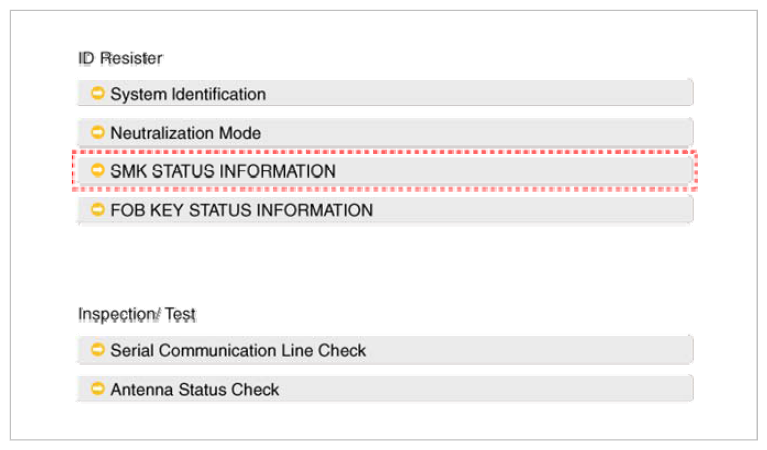

    Fig 1: Display - SMK Status Info Selection Screen
    G08811517Courtesy of HYUNDAI MOTOR AMERICA

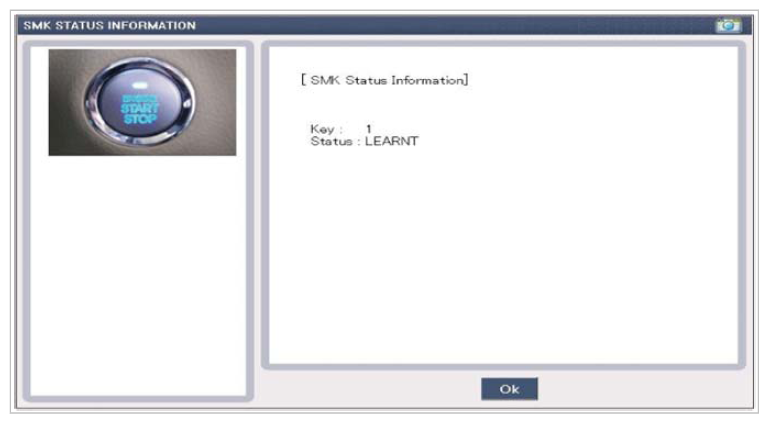

    Fig 2: Display - SMK Status Info Screen
    G08811518Courtesy of HYUNDAI MOTOR AMERICA
