Home >> Hyundai >> 2012 >> Veloster Standard Trans >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Ignition Switch Assembly >> Repair procedures >> Inspection

Repair procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

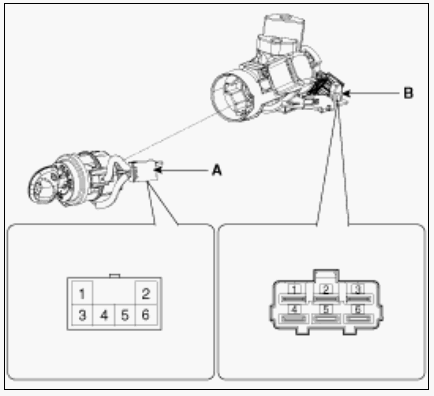

    Fig 1: Identifying Ignition And Key Warning Switch Connector Terminals
    G08811925Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.
    Fig 2: Key Warning Switch Connector Terminal Continuity Chart
    G08811926Courtesy of HYUNDAI MOTOR AMERICA
