Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver crash pad lower panel.

    (Refer to the "CRASH PAD ")

  3. Remove the steering column upper and lower shrouds.

    (Refer to the "CRASH PAD ")

  4. Remove the wiper switch.

    (Refer to the MULTIFUNCTION SWITCH )

  5. Remove the ignition switch after disconnecting the ignition switch 6P connector.
  6. Remove the key warning/immobilizer connector (A).

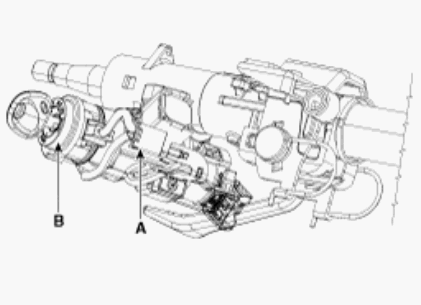

    Fig 1: Identifying Key Warning/Immobilizer Connector And Key Warning Switch
    G08811923Courtesy of HYUNDAI MOTOR AMERICA
  7. After loosening the screw, remove the key warning switch (B).
  8. Pushing lock pin with key ACC.
  9. Remove the key lock cylinder (A).

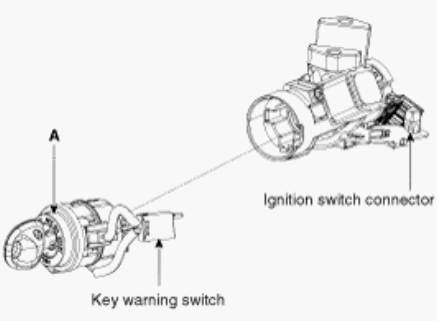

    Fig 2: Identifying Key Lock Cylinder
    G08811924Courtesy of HYUNDAI MOTOR AMERICA
