Armrest assembly Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the rear console cover (A).

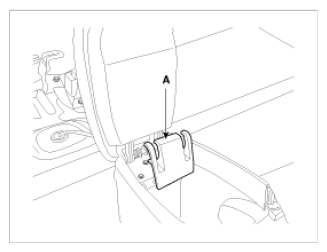

Fig 1: Identifying Rear Console Cover
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the armrest assembly (A).

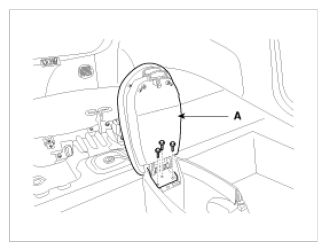

Fig 2: Identifying Armrest Assembly And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
