Cluster Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the cluster fascia lower panel (A).

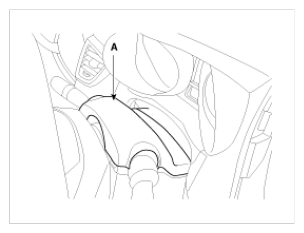

Fig 1: Identifying Cluster Fascia Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the cluster fascia upper panel (A).

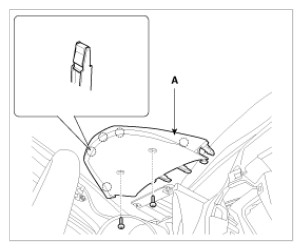

Fig 2: Identifying Cluster Fascia Upper Panel And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the cluster assembly (A).

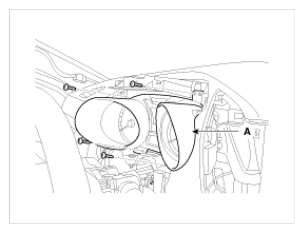

Fig 3: Identifying Cluster Assembly And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

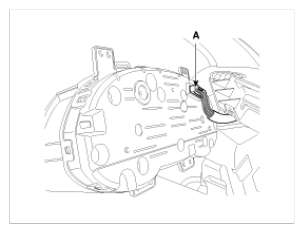

Fig 4: Identifying Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damage clips.
