With a knife, scrape the old adhesive smooth to a thickness of about 2mm (0.08 in.) on the bonding surface around the entire rear window glass opening flange:
1. Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
2. Remove the rubber dam and fasteners from the body.
3. Mask off surrounding surfaces before painting.

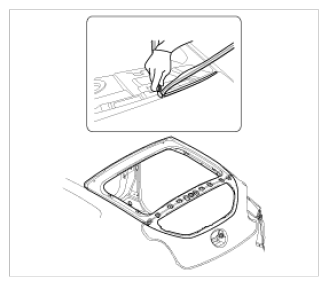

  Fig 1: Removing Adhesive From Bonding Surface Of Rear Window Glass Opening Flange Using Knife
  Courtesy of HYUNDAI MOTOR AMERICA
Clean the body bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease and water from getting on the clean surface.
[Front]

Fig 2: Cleaning Body Bonding Surface Using Tool (Front)
Courtesy of HYUNDAI MOTOR AMERICA

[Rear]

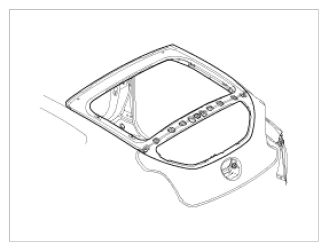

Fig 3: Cleaning Body Bonding Surface Using Tool (Rear)
Courtesy of HYUNDAI MOTOR AMERICA
With a sponge, apply a light coat of body primer to the original adhesive remaining around the windshield opening flange. Let the body primer dry for at least 10 minutes.
1. Do not apply glass primer to the body, and be careful not to mix up glass and body primer sponges.
2. Never touch the primed surfaces with your hands.
3. Mask off the dashboard before painting the flange.

  Fig 4: Identifying Body Primer Applying Areas On Windshield Opening Flange
  Courtesy of HYUNDAI MOTOR AMERICA
Apply a light coat of glass primer to the outside of the fasteners.
1. Never touch the primed surface with your hand. If you do, the adhesive may not bond to the glass properly, causing a leak after the tailgate glass is installed.
2. Do not apply body primer to the glass.
3. Keep water, dust, and abrasive materials away from the primer.
[Front]

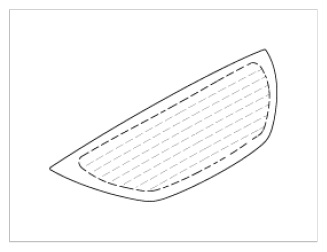

Fig 5: Identifying Glass Primer Applying Areas (Front)
Courtesy of HYUNDAI MOTOR AMERICA

[Rear]

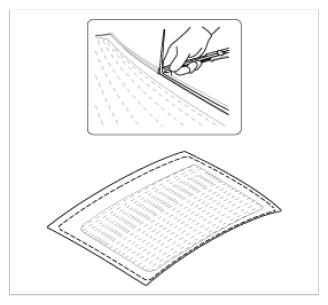

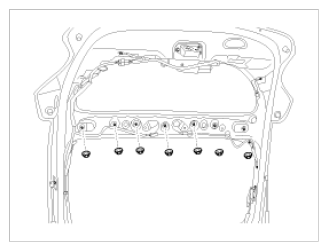

Fig 6: Identifying Glass Primer Applying Areas (Rear)
Courtesy of HYUNDAI MOTOR AMERICA

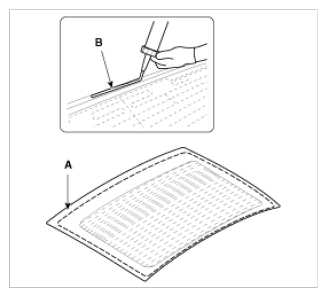

Pack adhesive into the cartridge without air pockets to ensure continuous delivery. Put the cartridge in a caulking gun, and run a bead of sealant (B) around the edge of the tail gate glass (A) as shown. Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.
[Front]

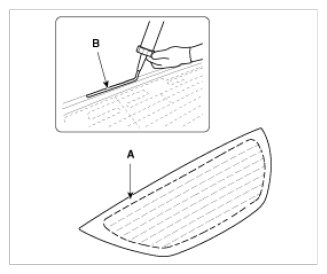

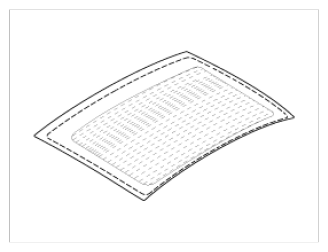

Fig 7: Applying Sealant Bead On Tail Gate Glass (Front)
Courtesy of HYUNDAI MOTOR AMERICA

[Rear]

Fig 8: Applying Sealant Bead On Tail Gate Glass (Rear)
Courtesy of HYUNDAI MOTOR AMERICA

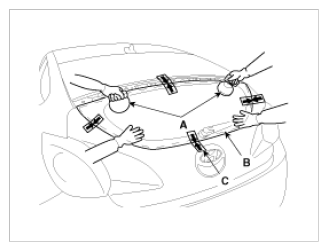

Use suction cups (A) to hold the tail gate glass (B) over the opening, align it with the alignment marks (C) made in step 15, and set it down on the adhesive. Lightly push on the windshield until its edges are fully seated on the adhesive all the way around. Do not open or close the doors until the adhesive is dry
[Front]

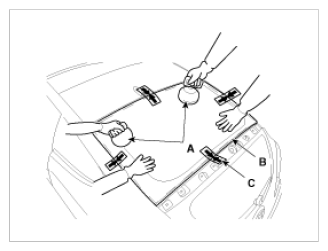

Fig 9: Holding Tail Gate Glass Using Suction Cups (Front)
Courtesy of HYUNDAI MOTOR AMERICA

[Rear]

Fig 10: Holding Tail Gate Glass Using Suction Cups (Rear)
Courtesy of HYUNDAI MOTOR AMERICA
Installation the rear spoiler (A).

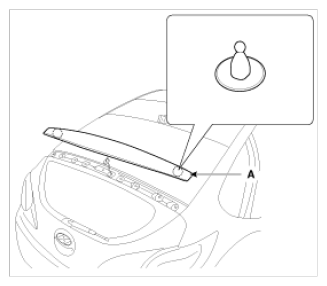

Fig 11: Identifying Rear Spoiler
Courtesy of HYUNDAI MOTOR AMERICA
Installation the rear spoiler mounting nuts.
Tightening torque: 5.9 ~ 6.4 N.m (0.6 ~ 0.65 kgf.m, 4.3 ~ 4.7 lb-ft)

Fig 12: Identifying Rear Spoiler Mounting Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Installation the washer nozzle (B) and high mounted stop lamp connector (A).

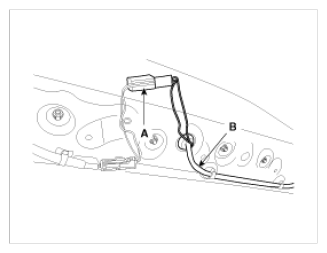

Fig 13: Identifying High Mounted Stop Lamp Connector And Washer Nozzle
Courtesy of HYUNDAI MOTOR AMERICA
Let the adhesive dry for at least 3-4 hour, then spray water over the glass and check for leaks.
CAUTION:
- Do not spray to adhesive area directly. Spray water over the glass and then spill water around the glass.
Areas may leak. Let the glass dry, then seal with adhesive.
CAUTION:
- Let the vehicle stand for at least four hours after glass installation. If the vehicle has to be used within the first eight, it must be driven slowly.
- Keep the glass dry for the first hour after installation.
- Please have the driver use caution and not drive vehicle along an uneven dirt road or drive violently.
Reinstall all remaining removed parts.
1. Rear wiper arm
  (Refer to the BE group - "REAR WIPER/WASHER ")
2. Tail gate glass heater connector
  (Refer to "REAR WINDOW DEFOGGER ")
3. Tail gate frame side trim
  (Refer to the "TAIL GATE ")
4. Tail gate trim
  (Refer to the "TAIL GATE ")
5. Tail gate frame upper trim & Tail gate center trim
  (Refer to the "TAIL GATE ")
