Repair Procedures: Replacement: Removal

CAUTION:

Remove the following items.
1. Front pillar trim
  (Refer to the BD group - "INTERIOR TRIM ")
2. Inside rear view mirror
  (Refer to the "MIRROR ")
3. Wiper arm
  (Refer to the "COWL TOP COVER ")
4. Cowl top cover
  (Refer to the "COWL TOP COVER ")

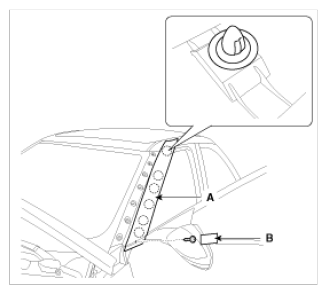

To remove the A pillar garnish (A), loosen the mounting screw after removing the cap (B).
Tightening torque: 0.5 ~ 1.0N.m (0.05 ~ 0.1kgf.m, 0.4 ~ 0.7 lb-ft)

Fig 1: Identifying A Pillar Garnish And Cap
Courtesy of HYUNDAI MOTOR AMERICA

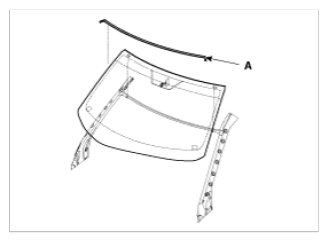

Using a screwdriver or remover, remove the windshield glass upper molding (A).

Fig 2: Identifying Windshield Glass Upper Molding
Courtesy of HYUNDAI MOTOR AMERICA

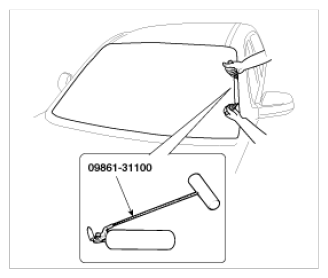

Cut out the sealant using the sealant cutting tool (09861-31100).

Fig 3: Cutting Sealant Using Sealant Cutting Tool (09861-31100)
Courtesy of HYUNDAI MOTOR AMERICA

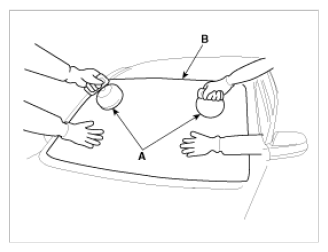

Remove the windshield glass (B) carefully using the glass holder (A).

Fig 4: Removing Windshield Glass Using Glass Holder
Courtesy of HYUNDAI MOTOR AMERICA
