Home >> Hyundai >> 2012 >> Veloster Standard Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing Chain >> Components and Components Location >> Components

Components and Components Location: Components

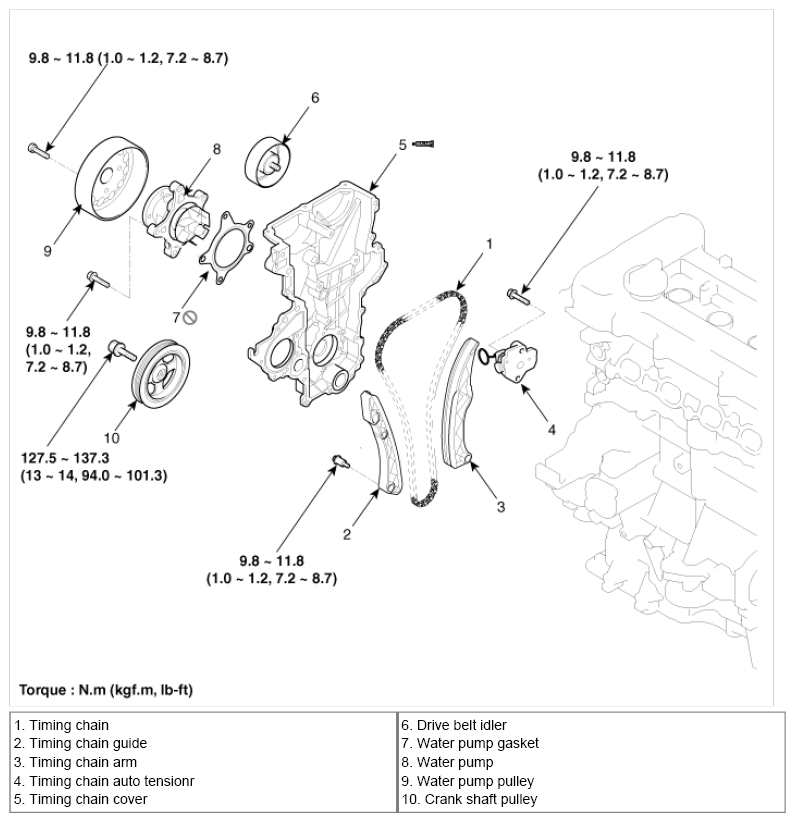

Fig 1: Timing Chain Replacement Components With Torque Specifications

G08806541

Courtesy of HYUNDAI MOTOR AMERICA
