Bank 1/Intake

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.

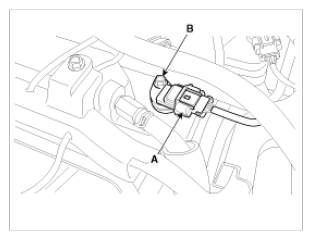

    Fig 1: Identifying Camshaft Position Sensor Connector And Installation Bolt (Bank 1 / Intake)
    G08807037Courtesy of HYUNDAI MOTOR AMERICA
