Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - Non-Turbo
>>
Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
Wave Form

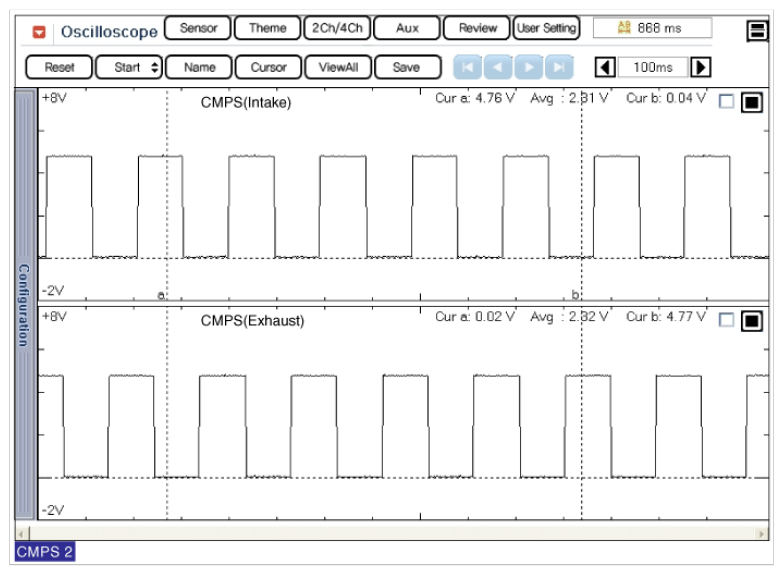

Fig 1: Camshaft Position Sensor Wave Form (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

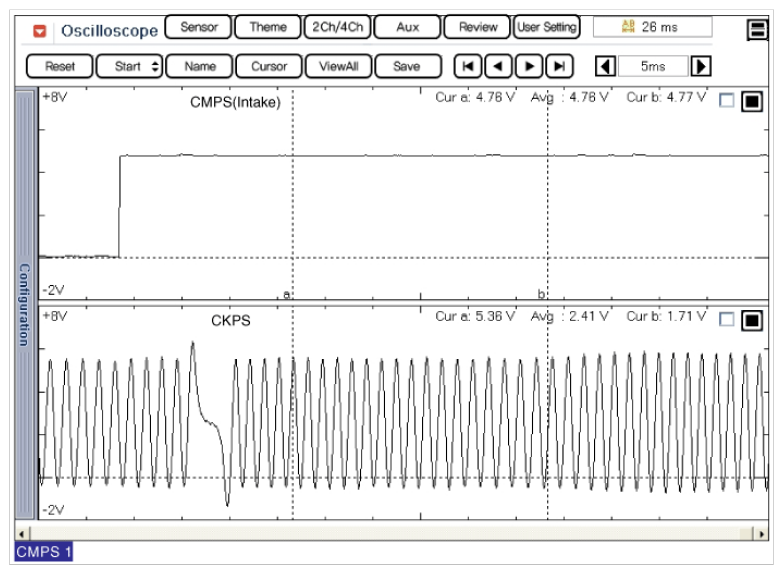

Fig 2: Camshaft Position Sensor Wave Form (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
