Repair Procedures: Disassembly

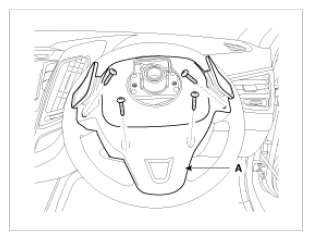

Loosen the screw and then separate the lower cover (A) from the steering wheel body.

Fig 1: Identifying Steering Wheel Body Lower Cover
Courtesy of HYUNDAI MOTOR AMERICA

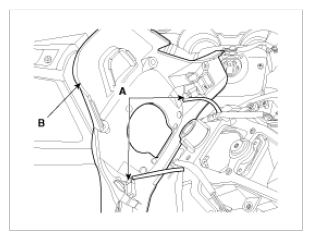

Disconnect the paddle shift connector (A) and then remove lower cover (B).

Fig 2: Identifying Lower Cover And Paddle Shift Connector
Courtesy of HYUNDAI MOTOR AMERICA

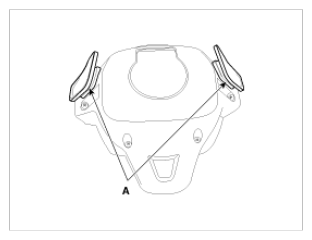

Remove the paddle shift (A).

Fig 3: Identifying Paddle Shift
Courtesy of HYUNDAI MOTOR AMERICA

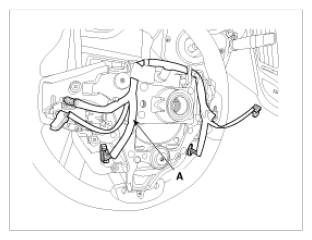

Disconnect the all connector and then remove the wiring (A).

Fig 4: Identifying Steering Wheel Wiring
Courtesy of HYUNDAI MOTOR AMERICA

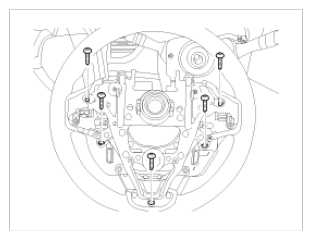

Loosen the screw and then remove the remote control switch assembly (A).

Fig 5: Identifying Remote Control Switch Assembly And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

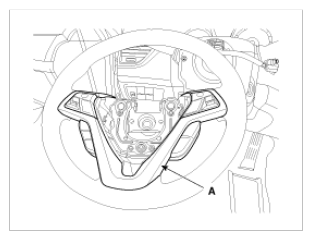

Fig 6: Identifying Remote Control Switch Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Reassemble is the reverse of the disassemble.
