Home >> Hyundai >> 2012 >> Veloster Standard Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

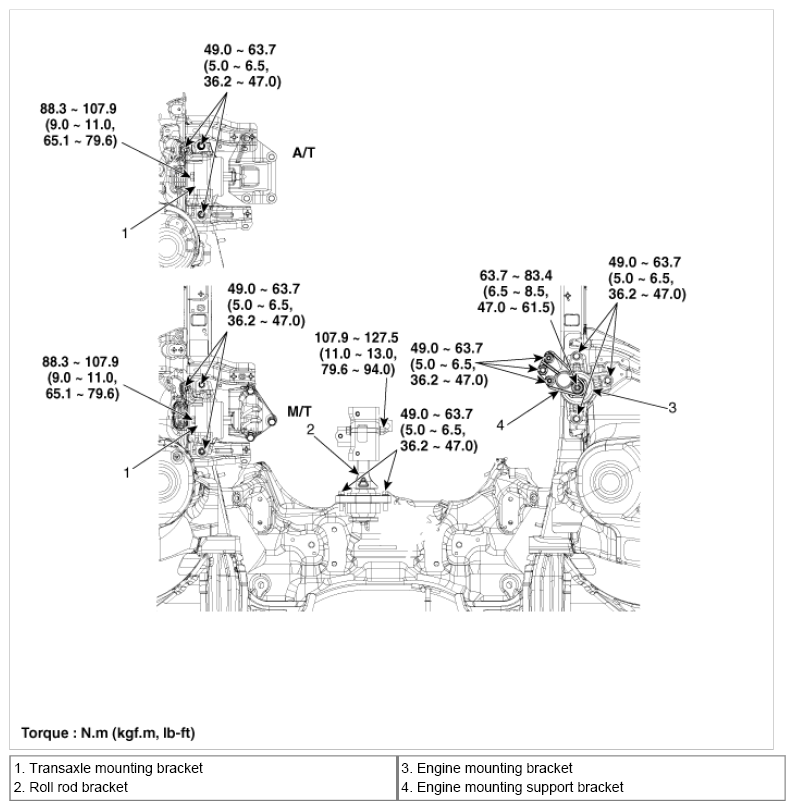

Fig 1: Engine Mounting Replacement Components With Torque Specifications

G08806505

Courtesy of HYUNDAI MOTOR AMERICA
