Home >> Hyundai >> 2012 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle >> Components and Components Location (F21) >> Components

Components and Components Location (F21): Components

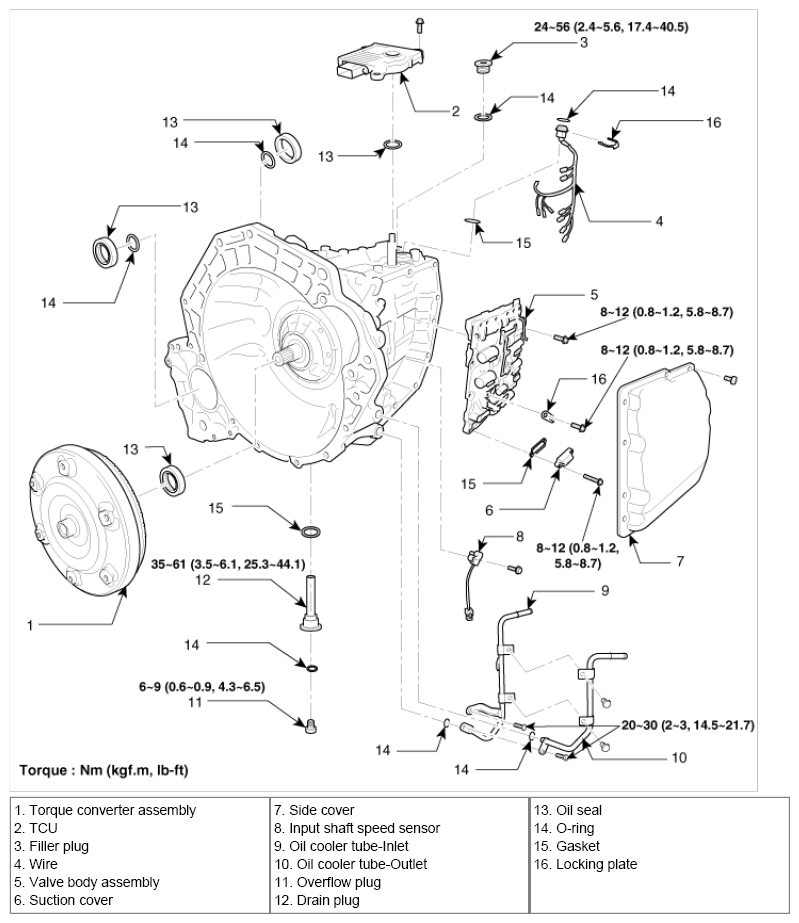

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications

G06861457

Courtesy of HYUNDAI MOTOR CO.
