Home >> Hyundai >> 2012 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Assembly >> Coupling Assembly >> Components and Components Location (F21) >> Components

Components and Components Location (F21): Components

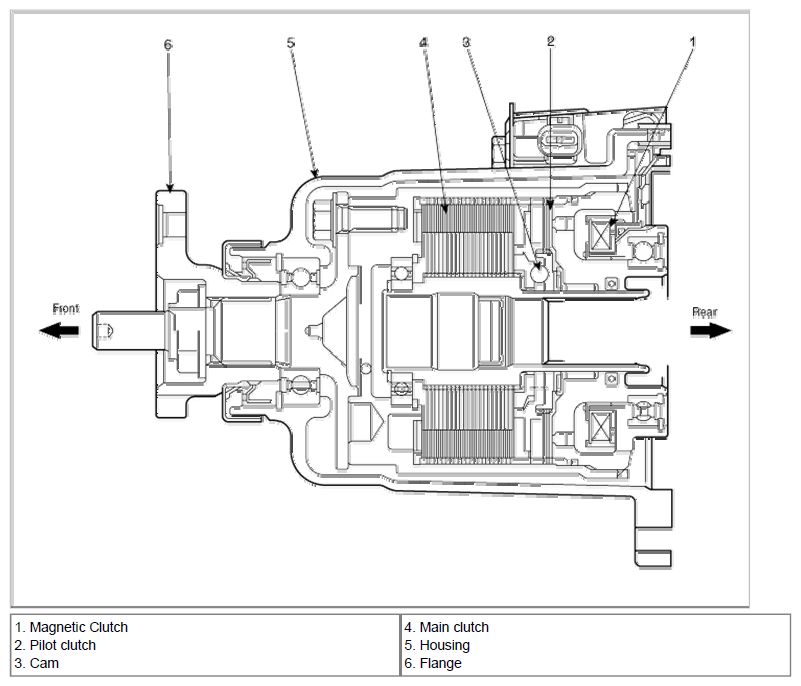

Fig 1: Identifying Coupling Assembly Components

G06861581

Courtesy of HYUNDAI MOTOR CO.
