Components and Components Location: Components

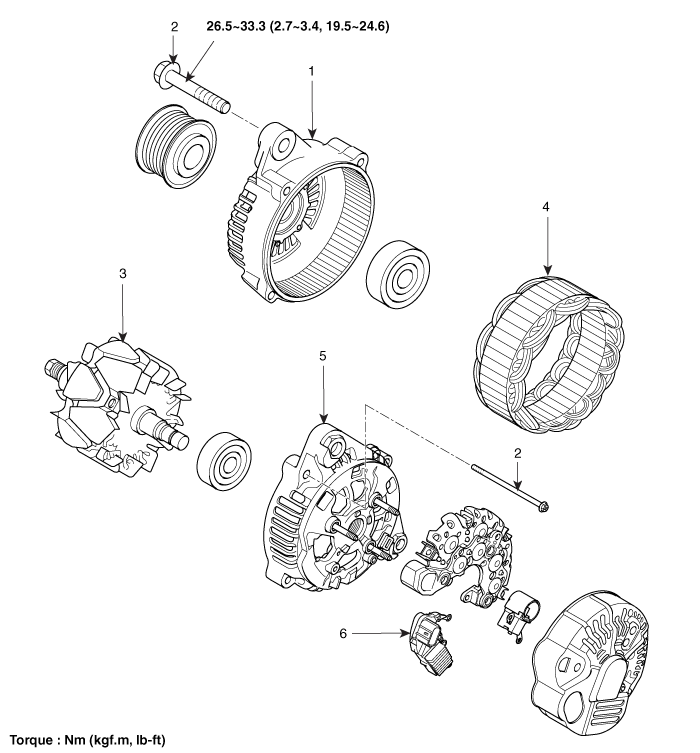

Fig 1: Exploded View Of Alternator Components

Courtesy of HYUNDAI MOTOR CO.

1. Generator front frame assembly
2. Bolt
3. Rotor assembly
4. Stator assembly
5. Rear bracket assembly
6. Regulator assembly
