On-Vehicle Inspection: Notes

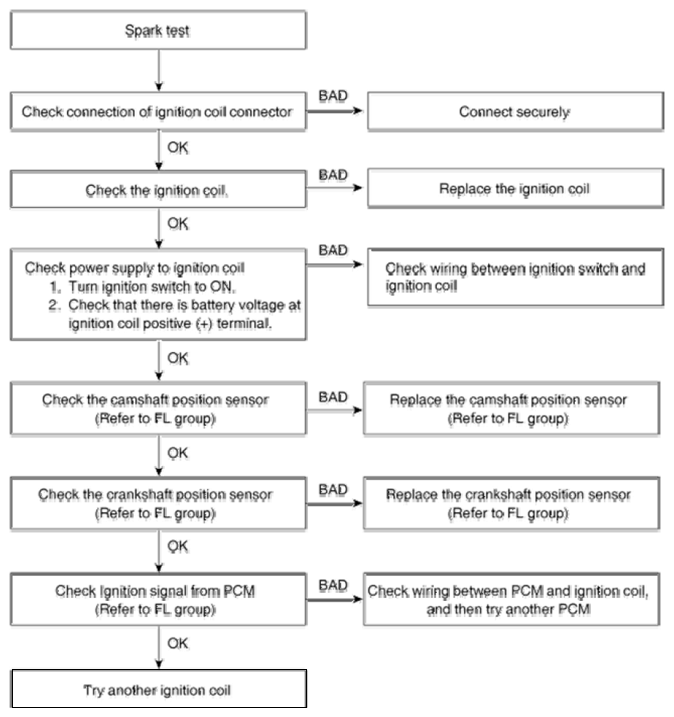

Spark Test

1. Remove the ignition coil connector (A).
   Fig 1: Identifying Ignition Coil Connector

   Courtesy of HYUNDAI MOTOR CO.
2. Remove the ignition coil (B).
3. Using a spark plug socket, remove the spark plug.
4. Install the spark plug to the ignition coil.
5. Ground the spark plug to the engine.
   Fig 2: Identifying Ignition Coil

   Courtesy of HYUNDAI MOTOR CO.
6. Check if spark occurs while engine is being cranked.
   NOTE: To prevent fuel being injected from injectors while the engine is being cranked, remove the fuel pump (A) relay from the fuse box.
   Crank the engine for no more than 5 ~ 10 seconds.

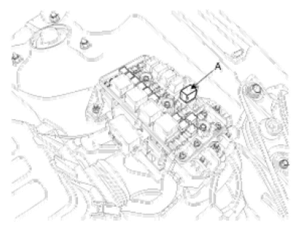

   Fig 3: Identifying Fuel Pump

   Courtesy of HYUNDAI MOTOR CO.
7. Inspect all the spark plugs.
8. Using a spark plug socket, install the spark plug.
9. Install the ignition coil.
10. Reconnect the ignition coil connector.
    Fig 4: Inspecting Spark Plugs

    Courtesy of HYUNDAI MOTOR CO.
