Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "Neutralization mode".

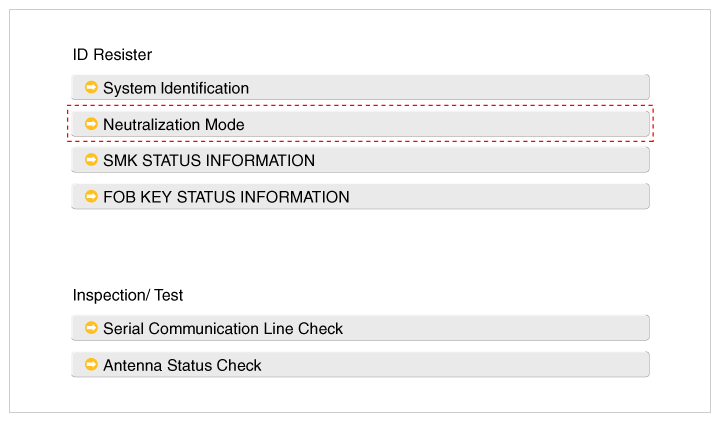

    Fig 1: Screen Display - ID Resister And Inspection/Test
    G10243895Courtesy of HYUNDAI MOTOR AMERICA

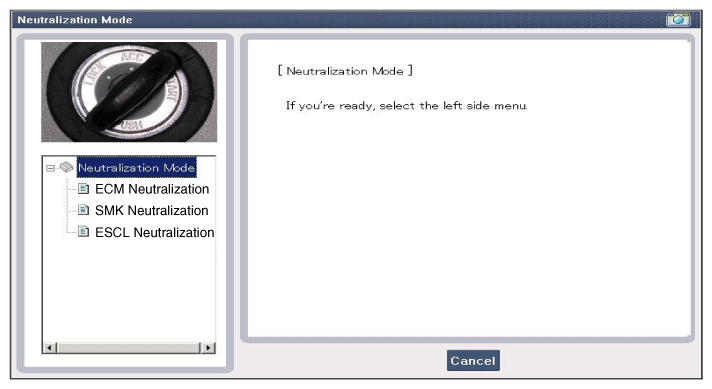

    Fig 2: Screen Display - Neutralization Mode
    G10243896Courtesy of HYUNDAI MOTOR AMERICA

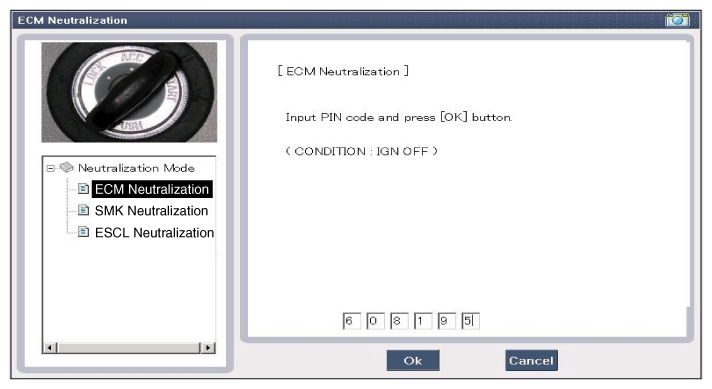

    Fig 3: Screen Display - ECM Neutralization (1 Of 2)
    G10243897Courtesy of HYUNDAI MOTOR AMERICA

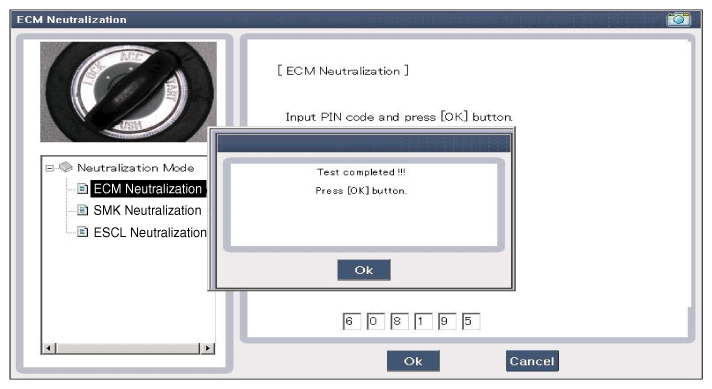

    Fig 4: Screen Display - ECM Neutralization (2 Of 2)
    G10243898Courtesy of HYUNDAI MOTOR AMERICA

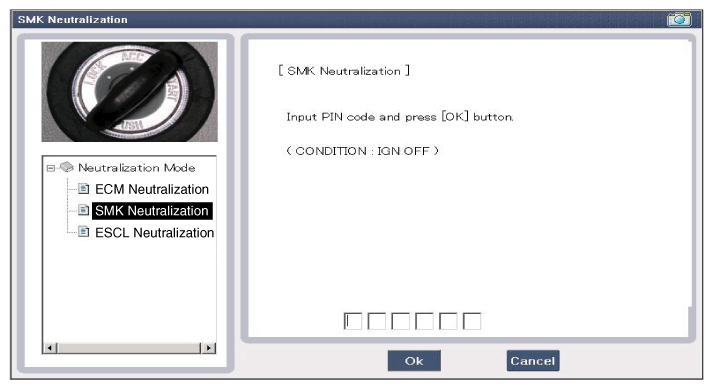

    Fig 5: Screen Display - SMK Neutralization (1 Of 3)
    G10243899Courtesy of HYUNDAI MOTOR AMERICA
    Fig 6: Screen Display - SMK Neutralization (2 Of 3)
    G10243900Courtesy of HYUNDAI MOTOR AMERICA

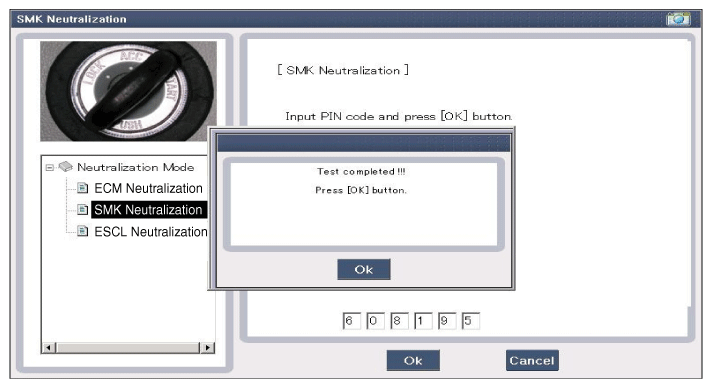

    Fig 7: Screen Display - SMK Neutralization (3 Of 3)
    G10243901Courtesy of HYUNDAI MOTOR AMERICA
    INPUT SWITCH LIST

    No Item name Unit
    1 SSB switch 2 -
    2 ACC -
    3 IGN1 -
    4 Gear 'P' Position -
    5 Brake switch -
    6 FL Door Lock Button -
    7 FR Door Lock Button -
    8 Trunk Lid switch -
    9 Battery Voltage -
    10 Alternator Voltage -
    11 KEY out Indicator Lamp -
    12 Immobilizer Lamp -
    13 External Buzzer -
    ACTUATOR LIST

    No. Item name Condition
    1 Immo.indicator Lamp Ignition switch ON
    Engine off
    2 External Buzzer Ignition switch ON
    Engine off
    3 Interior Antenna 1 Active Ignition switch ON
    Engine off
    4 Interior Antenna 2 Active Ignition switch ON
    Engine off
    5 Trunk Antenna Active Ignition switch ON
    Engine off
    6 Bumper Antenna Active Ignition switch ON
    Engine off
    7 DRV DR Antenna Active Ignition switch ON
    Engine off
    8 AST DR Antenna Active Ignition switch ON
    Engine off
