Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

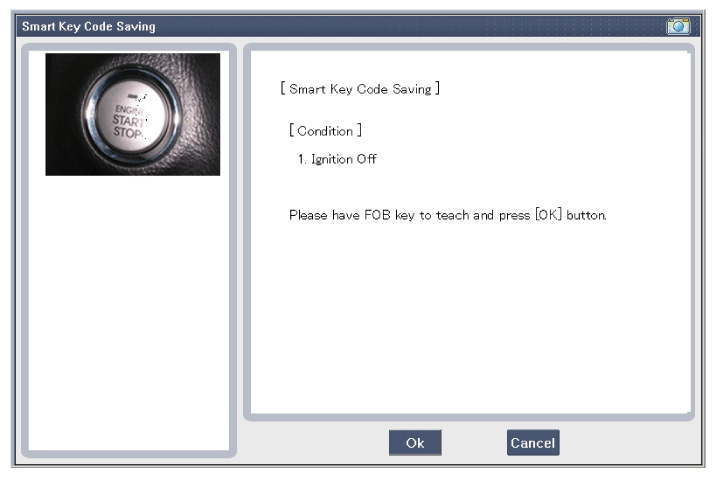

Fig 2: Screen Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as in illustration below.

Fig 3: Screen Display - Smart Key Code Saving (1 Of 8)
Courtesy of HYUNDAI MOTOR AMERICA
After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

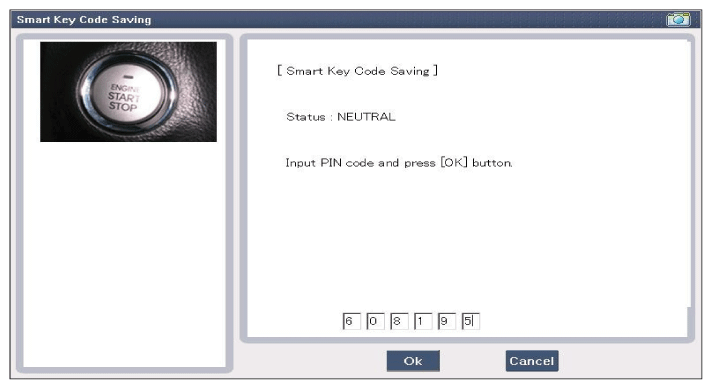

Fig 4: Screen Display - Smart Key Code Saving (2 Of 8)
Courtesy of HYUNDAI MOTOR AMERICA

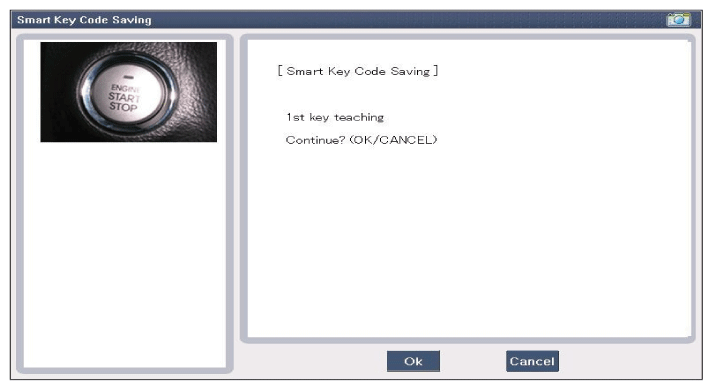

Fig 5: Screen Display - Smart Key Code Saving (3 Of 8)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 6: Screen Display - Smart Key Code Saving (4 Of 8)
Courtesy of HYUNDAI MOTOR AMERICA

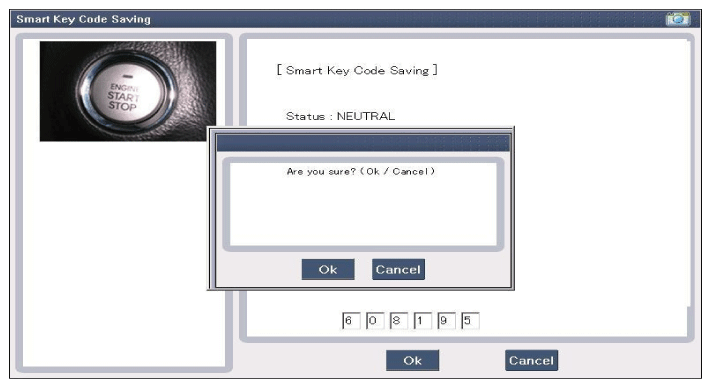

Fig 7: Screen Display - Smart Key Code Saving (5 Of 8)
Courtesy of HYUNDAI MOTOR AMERICA
Input the "Pin code" for second key teaching.

Fig 8: Screen Display - Smart Key Code Saving (6 Of 8)
Courtesy of HYUNDAI MOTOR AMERICA

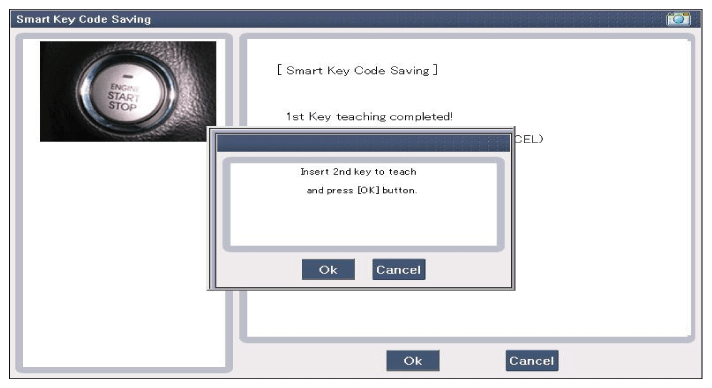

Fig 9: Screen Display - Smart Key Code Saving (7 Of 8)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

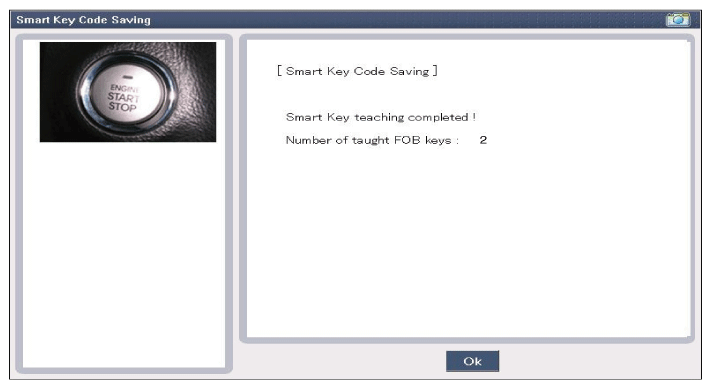

Fig 10: Screen Display - Smart Key Code Saving (8 Of 8)
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown as in illustration above when key teaching process is completed.
