Home >> Hyundai >> 2013 >> Elantra GLS, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery >> Components and Components Location >> Components

Components and Components Location: Components

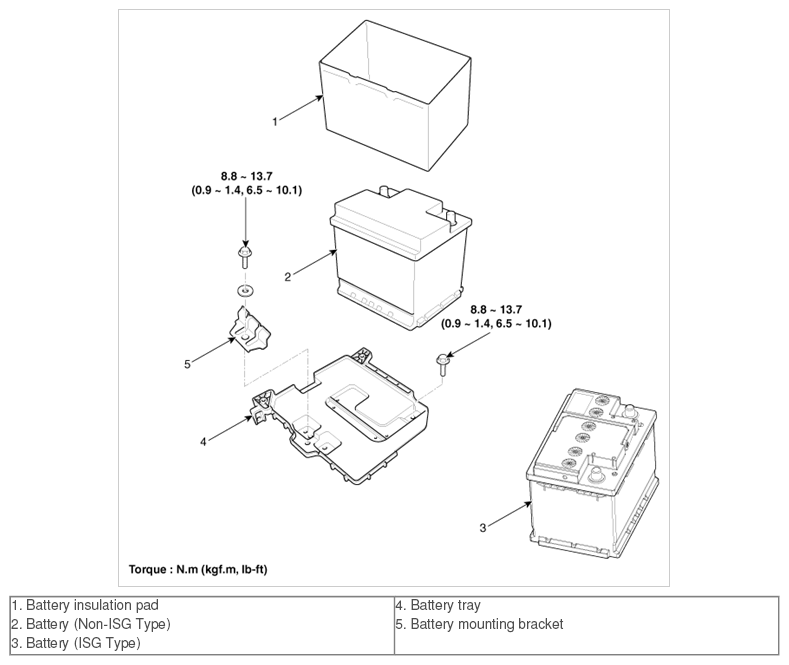

Fig 1: Battery Components With Torque Specifications

G10234419

Courtesy of HYUNDAI MOTOR AMERICA
